02 - Top, Lid And Control Box


03 - Console


04 - Tub And Basket


05 - Drive


06 - Cabinet


07 - Miscellaneous , Water Pump


08 - Wiring Harness , Literature And Optional


09 - Gearcase


10 - Basket Drive And Basket

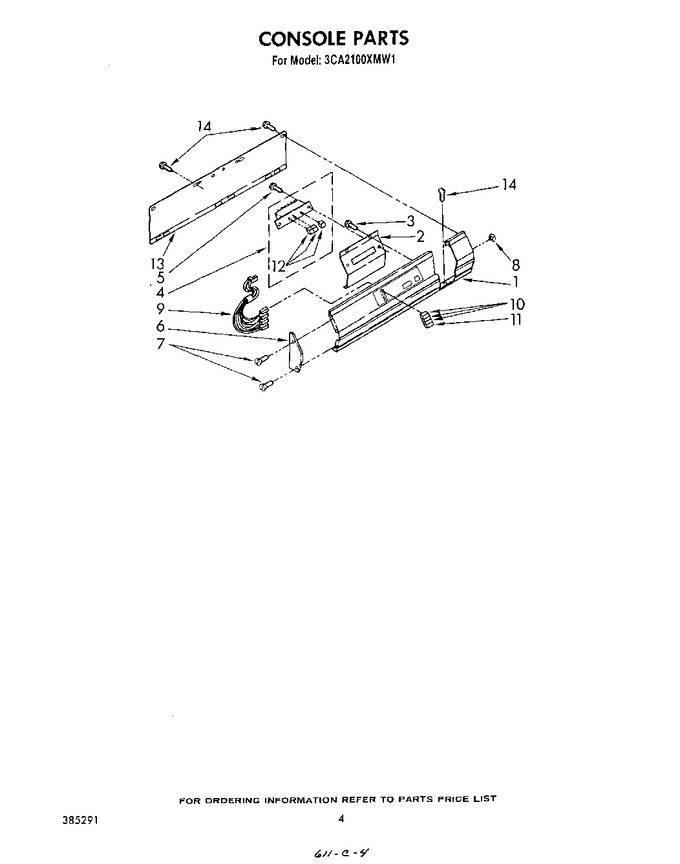

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	386369		Billboard, Console		Appelez-nous	-
2	386567		Bracket, Control		Appelez-nous	-
3	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
4	385749		Switch, Cycle Selector		Appelez-nous	-
5	WP965173		Screw, 8-18 X 3/8   (Replaces: 9424101)			Immediately	$ 9.65
6	385799		Cap, End (l.h.)		Appelez-nous	-
7	WP355515		Screw, End Cap To Billboard   (Replaces: 98057)				$ 6.90
8	54690		Plug, Button		Appelez-nous	-
9	385755		Lights, Indicator (240 Volt)		Appelez-nous	-
10	301006		Lens, Amber (3)		Appelez-nous	-
11	358741		Lens, Yellow (11)		Appelez-nous	-
12	385798		Pushbutton (3)		Appelez-nous	-
13	386370		Panel, Rear Billboard		Appelez-nous	-
14	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07

    View Diagram in Separate Window       Print Part List
