Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 95440 Connector, Hose Special Order $ 22.55

2 WP356138 Clamp, Hose   (Replaces: 356138) In-Stock Immediately $ 7.67

3 WP285655 Clamp, Hose   (Replaces: 370445) In-Stock Immediately $ 7.55

7 WP96743 Hose, Gooseneck   (Replaces: 96743) Special Order $ 90.93

9 WP89503 Hose, Inlet (2)   (Replaces: 81339) In-Stock Immediately $ 21.68

10 WP16123 Washer, Rubber (4)   (Replaces: 16123) Special Order $ 6.93

11 WP3390631 Screw, 10-24 X 3/8   (Replaces: 62863) Special Order $ 7.04

12 85279 Panel, Rear Appelez-nous -
13 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.07

14 WP96160 Screen, Filter   (Replaces: 96160) Special Order $ 10.54

15 21114 Hose, Pump Discharge Appelez-nous -
16 WP285655 Clamp, Hose   (Replaces: 272858) In-Stock Immediately $ 7.55

17 WP18776 Lock, Front Top (2)   (Replaces: 18776) In-Stock Immediately $ 11.41

18 356459 Plate, Gusset (2) Appelez-nous -
25 384793 Cabinet (white) Appelez-nous -
26 WP359364 Clip, Leveling Mechanism (2)   (Replaces: 359364) In-Stock Immediately $ 7.06

28 359059 Leveling Link Assembly Appelez-nous -
29 WP358594 Foot, Rear (2)   (Replaces: 358594) Special Order $ 12.24

30 18849 Pad, Hinge (2) Special Order $ 18.13

31 92657 Hinge, L.h. Appelez-nous -
31 18775 Hinge, R.h. Appelez-nous -
32 3347285 Cord, Power Appelez-nous -
33 285874 Valve, Mixing (serviced Only As A Complete Valve)   (Replaces: 365423) Special Order $ 183.31

34 358336 Spring, Snubber   (Replaces: 357977) In-Stock Immediately $ 4.80

35 358336 Snubber In-Stock Immediately $ 4.80

37 WP681414 Screw, 10-16 X 1/2   (Replaces: 359262) In-Stock Immediately $ 7.07

38 WP367594 Foot, Front (2)   (Replaces: 367594) In-Stock Immediately $ 18.46

39 WP681414 Screw, 10-16 X 1/2   (Replaces: 687128) In-Stock Immediately $ 7.07

40 285394 Switch, Water Level   (Replaces: 359361) Appelez-nous -
41 WP90767 Screw, 8a X 7/8   (Replaces: 90767) In-Stock Immediately $ 7.04

42 353885 Barrier, Splash Appelez-nous -
46 WP98997 Clip, Harness   (Replaces: 98997) Special Order $ 9.98

47 WP90016 Clip   (Replaces: 90016) Special Order $ 10.19

48 354179 Plug, Cabinet (1) Appelez-nous -
51 364089 Ground Wire Appelez-nous -
57 98669 Locator, Top Special Order $ 12.03


    View Diagram in Separate Window     Print Icon   Print Part List

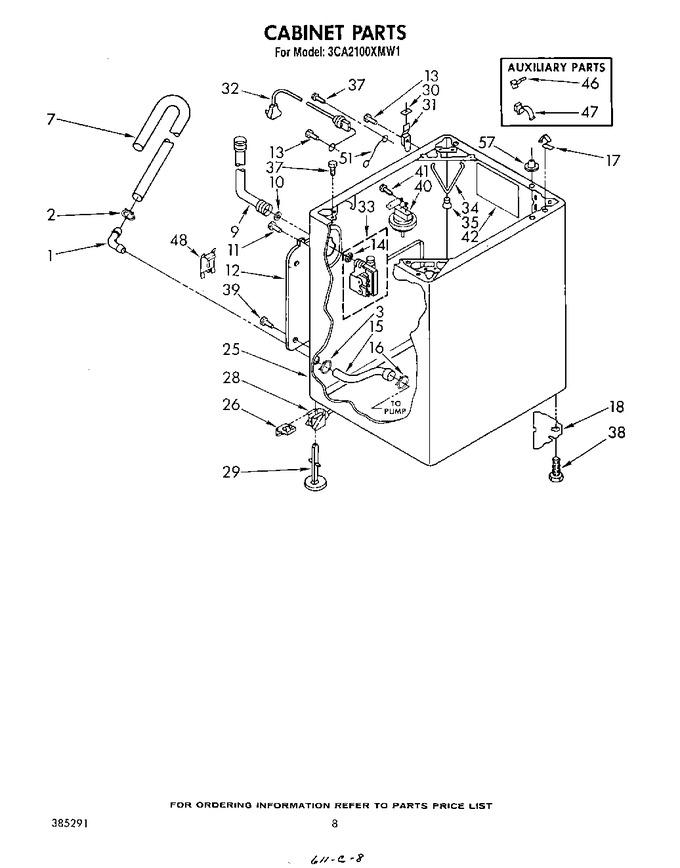

Diagram for 3CA2100XMW1
