SELECT A DIAGRAM

01 - Cover

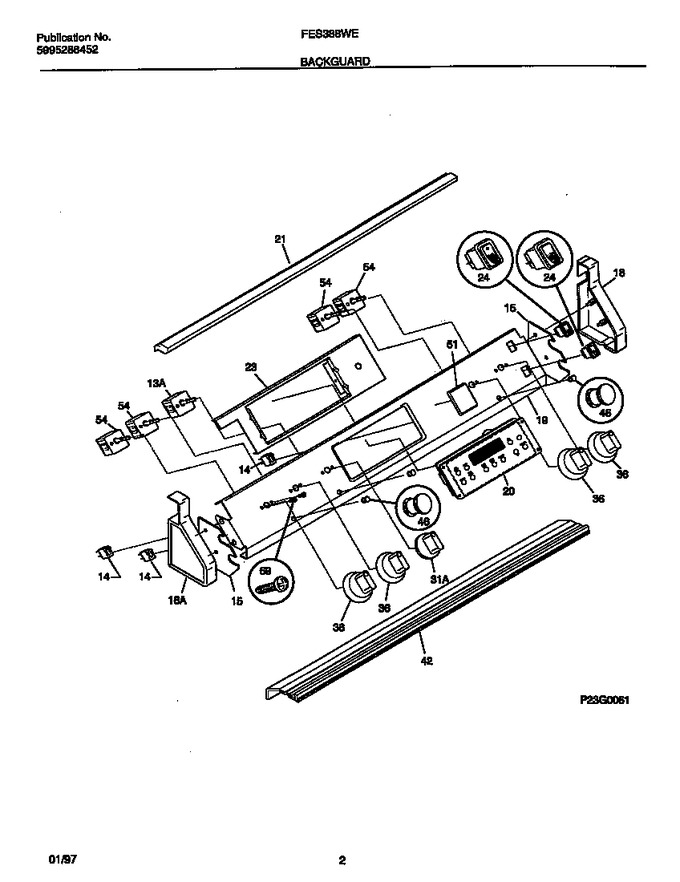

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	5304508926		Switch-warmer, Infinite   (Replaces: 316095500)			Immediately	$ 84.18
14	5303051533		Light-lamp/indicator				$ 53.81
15	5303311123		Support-backguard, (2)		Appelez-nous	-
18	5303300160		End Cap, Black, Rh		Appelez-nous	-
18	5303300161		End Cap, Black, Lh		Appelez-nous	-
19	318005545		Panel-control		Appelez-nous	-
20	318012903		Clock/timer,electronic		Appelez-nous	-
21	318027800		Trim-backguard, Top		Appelez-nous	-
23	318015502		Bracket-clock Mtg		Appelez-nous	-
23	5303300265		Screw, 8-18 X 1/2 (not Illustrated)				$ 15.17
24	316083101		Switch-rocker, Rh				$ 85.01
24	316083100		Switch-rocker, Lh				$ 89.31
31	318017600		Knob-warmer				$ 30.14
36	318099202		Knob-surface Unit, (2)				$ 156.24
42	318106900		Trim-vent, Black		Appelez-nous	-
46	5303271239		Lens-light/lamp, Indicator		Appelez-nous	-
51	316082300		Nameplate, Black		Appelez-nous	-
54	5303935086		Switch-surface Unit, (4)   (Replaces: 318120503)			Immediately	$ 51.95
69	5303292005		Screw-switch Mtg, 8-32 X 5/32, (6)		Appelez-nous	-
69	5303323137		Screw, Switch Mtg, (2)   (Replaces: 5303305528)				$ 11.88
*82200	08016432		Screw, Truss Head, 8-18 X 3/8, (4)		Appelez-nous	-
*82201	318086021		Plate, (4)		Appelez-nous	-
*82202	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*82203	5303304692		Plate, Backup, Light Switch		Appelez-nous	-
*82204	5304453707		Screw, 8-32 X 3/8, (6)   (Replaces: 5303311333)			Immediately	$ 15.92
*82205	5303311528		Screw, Oval Hd, 6-20 X 5/8, Black		Appelez-nous	-
