SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body

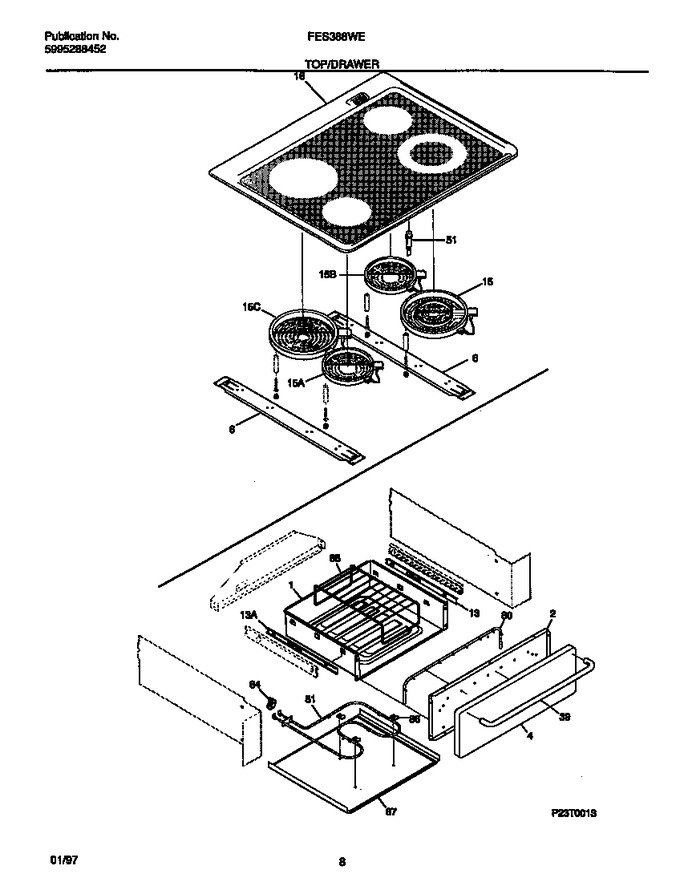

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318142500		Drawer,warmer		Appelez-nous	-
2	318108011		Liner, Drawer		Appelez-nous	-
4	318107900		Panel-drawer, Stainless		Appelez-nous	-
6	5303311190		Support-element		Appelez-nous	-
13	316096501		Channel-drawer, Lh		Appelez-nous	-
13	316096500		Channel-drawer, Rh		Appelez-nous	-
15	318050200		Element-surface, 2000/1000 W		Appelez-nous	-
15	5303297143		Element-surface, Halogen, Large/8 Inch, W/limit Switch		Appelez-nous	-
15	318198817		Element-surface, 1200 W   (Replaces: 318050100)			Immediately	$ 192.78
15	5303297142		Element-surface, Halogen, Small/6 Inch, W/limit Switch		Appelez-nous	-
16	318079504		Main Top		Appelez-nous	-
39	316079500		Handle-door/drawer, Stainless				$ 289.70
51	5303297484		Light-indicator		Appelez-nous	-
80	318052700		Seal,door ,warmer Drawer		Appelez-nous	-
81	316093100		Element, Warmer Drawer		Appelez-nous	-
84	318003400		Thermostat-safety				$ 237.43
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	318121500		Base-warmer		Appelez-nous	-
*82222	08002848		Screw, 10-24 X 29/32, Terminal Block		Appelez-nous	-
*82223	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*82224	5303317177		Spring-element Mtg				$ 12.74
*82225	5303317178		Spacer-element				$ 2.42
*82226	5303317179		Screw-element				$ 2.42

    View Diagram in Separate Window       Print Part List
