01 - Control Panel
02 - Control System Upper Oven
03 - Lower Oven Body
04 - Lower Oven Control
05 - Lower Oven Door
06 - Upper Oven Body
07 - Upper Oven Door
SELECT A DIAGRAM
New Model Search:

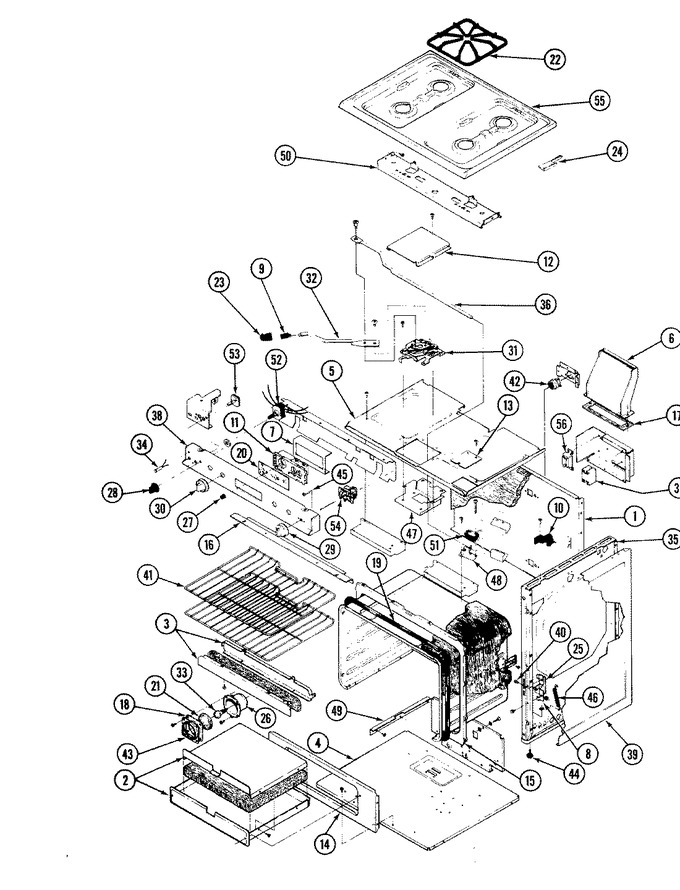

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F068-20 | Back, Main | 1 |
|
- | ||||
| 2 | 3601F126-45 | Baffle, Bake & Broil | 1 |
|
- | ||||
| 3 | 7401P005-60 | Cap, Terminal Block | 1 |
|
- | ||||
| 3 | 7116P003-60 | Bolt | 1 |
|
- | ||||
| 3 | 3601W125-12 | Baffle, Ovn Front | 1 |
|
- | ||||
| 4 | 2205F012-13 | Bottom, Oven | 1 |
|
- | ||||
| 5 | 4011F075-23 | Box, Burner | 1 |
|
- | ||||
| 6 | 3801F093 | Bracket | 1 |
|
- | ||||
| 6 | 4006W026-13 | Box, Flue | 1 |
|
- | ||||
| 7 | 3801F082 | Bracket | 1 |
|
- | ||||
| 7 | 0284330 | Bracket, Manifold Rh | 1 |
|
- | ||||
| 7 | 3801F090 | Bracket | 1 |
|
- | ||||
| 7 | 0284303 | Bracket | 1 |
|
- | ||||
| 8 | 7112P019-60 | Clip, Hinge Pin | 1 |
|
- | ||||
| 9 | 7112P003-60 | Clip, Latch Handle | 1 |
|
- | ||||
| 9 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 1 |
|
Immediately | $ 11.07 | |||
| 10 | 7112P051-60 | Clip, Retainer | 1 |
|
- | ||||
| 11 | 7601P063-60 | Clock | 1 |
|
- | ||||
| 12 | 4005F176-80 | Cover, Module | 1 |
|
- | ||||
| 12 | 4005F137-80 | Cover, Catch Assy. | 1 |
|
- | ||||
| 13 | 4005F139 | Cover Switch Lock | 1 |
|
- | ||||
| 14 | 0462232 | Frame Assy. | 1 |
|
- | ||||
| 15 | 2201F033-23 | Front, Oven | 1 |
|
- | ||||
| 16 | 4012F013 | Frame, Burner Box Front | 1 |
|
- | ||||
| 17 | 7201P008-60 | Gasket | 1 |
|
- | ||||
| 18 | 7201P014-60 | Gasket, Housing | 1 |
|
- | ||||
| 19 | 7201P001-60 | Gasket, Oven | 1 |
|
- | ||||
| 20 | 1327135 | Glass, Clock | 1 |
|
- | ||||
| 21 | 7902P057-60 | Glass, Lamp Guard | 1 |
|
- | ||||
| 22 | 2003W001-00 | Grate | 1 |
|
- | ||||
| 23 | 7701P003-60 | Handle, Door Lock | 1 |
|
- | ||||
| 24 | 7105P002-60 | Support, Main Top | 1 |
|
- | ||||
| 25 | 3418F029-34 | Hinge, Oven Door (lt) | 1 |
|
- | ||||
| 25 | 3418F030-34 | Hinge, Oven Door (rt) | 1 |
|
- | ||||
| 26 | Y0507229 | Insert | 1 |
|
- | ||||
| 26 | Y0537241 | Housing | 1 |
|
- | ||||
| 27 | 1359263 | Knob, Switch | 1 |
|
- | ||||
| 28 | 7711P381-60 | Knob, Selector | 28 |
|
- | ||||
| 28 | 7711P261-60 | Knob, Selector | 1-27 |
|
- | ||||
| 29 | 7711P322-60 | Knob, Thermostat | 1-27 |
|
- | ||||
| 29 | 7731P020-60 | Knob, Thermostat | 28 |
|
- | ||||
| 30 | WP7711P135-60 | Knob, Valve (Replaces: 7733P038-60) | 28 |
|
$ 25.06 | ||||
| 30 | 7711P173-60 | Knob, Valve | 1-27 |
|
- | ||||
| 31 | 8002E009 | Catch, Door Lock | 1 |
|
- | ||||
| 32 | 8009P010-60 | Lever, Door Lock | 1 |
|
- | ||||
| 33 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 1 |
|
Immediately | $ 1.98 | |||
| 34 | 7407P024-60 | Light, Signal | 1 |
|
- | ||||
| 35 | 4009W034-20 | Lining, In Side | 1 |
|
- | ||||
| 36 | 7807P004-60 | Link, Switch | 1 |
|
- | ||||
| 37 | 4396923 | Broiler Pan Kit (Replaces: 1430280) | 1 |
|
Immediately | $ 52.04 | |||
| 37 | 7431P006-60 | Module, Spark | 1 |
|
- | ||||
| 38 | 7712A036-60 | Panel, Manifold | 1 |
|
- | ||||
| 39 | 2618F052-74 | Panel, Side (alm) | 1 |
|
- | ||||
| 40 | 7113P002-60 | Pin, Hinge | 1 |
|
$ 9.05 | ||||
| 41 | 7801P011-60 | Rack, Oven | 1 |
|
- | ||||
| 42 | 7408P002-60 | Receptacle, Lamp | 1 |
|
- | ||||
| 43 | 0749227 | Retainer, Lampguard | 1 |
|
- | ||||
| 44 | 1986347 | Screw, Leveling | 1 |
|
- | ||||
| 45 | 7101P125-60 | Screw, Thermostat | 1 |
|
- | ||||
| 45 | 7214P003-60 | Sleeve | 1 |
|
- | ||||
| 45 | 3604F086-51 | Shield, Man. Cover | 1 |
|
- | ||||
| 46 | WP7803P058-60 | Spring (Replaces: 7803P002-60) | 1 |
|
$ 16.55 | ||||
| 47 | 3807F195 | Support, Latch | 1 |
|
- | ||||
| 48 | 3807F193 | Support, Door Lock Switch | 1 |
|
- | ||||
| 49 | 0862384 | Support | 1 |
|
- | ||||
| 50 | 3807F221-80 | Support, Top Burner | 1 |
|
- | ||||
| 51 | 7403P077-60 | Switch----na | 1 |
|
- | ||||
| 52 | 7403P019-60 | Switch, Light | 1 |
|
- | ||||
| 53 | 7403P092-60 | Switch, Selector | 1 |
|
- | ||||
| 54 | 7515P020-60 | Thermostat, Ov | 1 |
|
- | ||||
| 55 | 2001F035-94 | Top, Main | 1 |
|
- | ||||
| 55 | 7402P014-60 | Cord, Power | 1 |
|
- | ||||
| 55 | 7720P046-60 | Trim, Main Top (left) | 1-26 |
|
- | ||||
| 55 | 7720P049-60 | Trim, Main Top (right) | 1-26 |
|
- | ||||
| 55 | 7746P025-60 | Trim, Main Top (left) | 27 |
|
- | ||||
| 55 | 7746P026-60 | Trim, Main Top (right) | 27 |
|
- | ||||
| 56 | 7412P005-60 | Ballast | 1 |
|
- | ||||
| NI | 8112P009-60 | Manual, Use & Care | 1-22 |
|
- | ||||
| NI | 8112P034-60 | Manual, Use & Care | 23 |
|
- |
