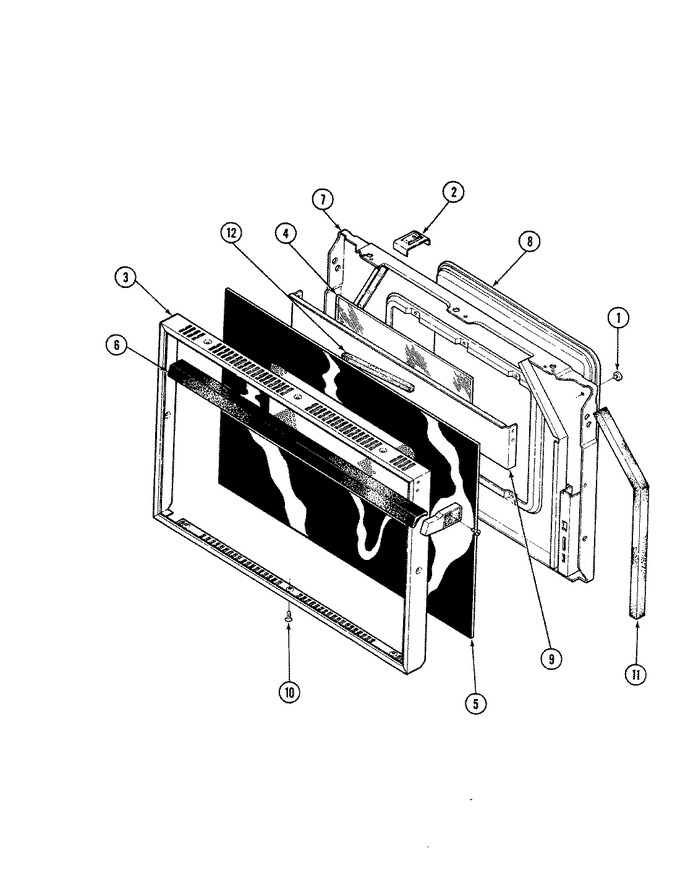

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8003P002-60 | Bumper Door (round) | 1 |
|
- | ||||
| 1 | 8002P015-60 | Catch, Dr Lk | 1 |
|
- | ||||
| 2 | 7112P034-60 | Clip, Door | 1 |
|
- | ||||
| 3 | 7706P178-60 | Frame, Door | 1 |
|
- | ||||
| 4 | 7902P097-60 | Glass, Inner | 1 |
|
$ 63.87 | ||||
| 5 | 7902P065-60 | Glass, Door | 1 |
|
- | ||||
| 6 | 7728P012-60 | Insert, Oven Door Handle | 1 |
|
- | ||||
| 6 | 7701P047-60 | Handle, Door | 1 |
|
- | ||||
| 7 | 2422H082 | Lining, Ovn Door | 1 |
|
- | ||||
| 8 | 2410F016-51 | Pad, Inner | 1 |
|
- | ||||
| 8 | 2416F019-74 | Panel, Svc Dr Almond | 1 |
|
- | ||||
| 9 | 3804F051-80 | Retainer, Glass | 1 |
|
- | ||||
| 10 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 1 |
|
Immediately | $ 12.62 | |||
| 11 | 7208P013-60 | Seal, Foam Tape | 1 |
|
- | ||||
| 12 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 1 |
|
$ 11.95 | ||||
| 12 | 3420A033-34 | Stop, Oven Door | 1 |
|
- |
