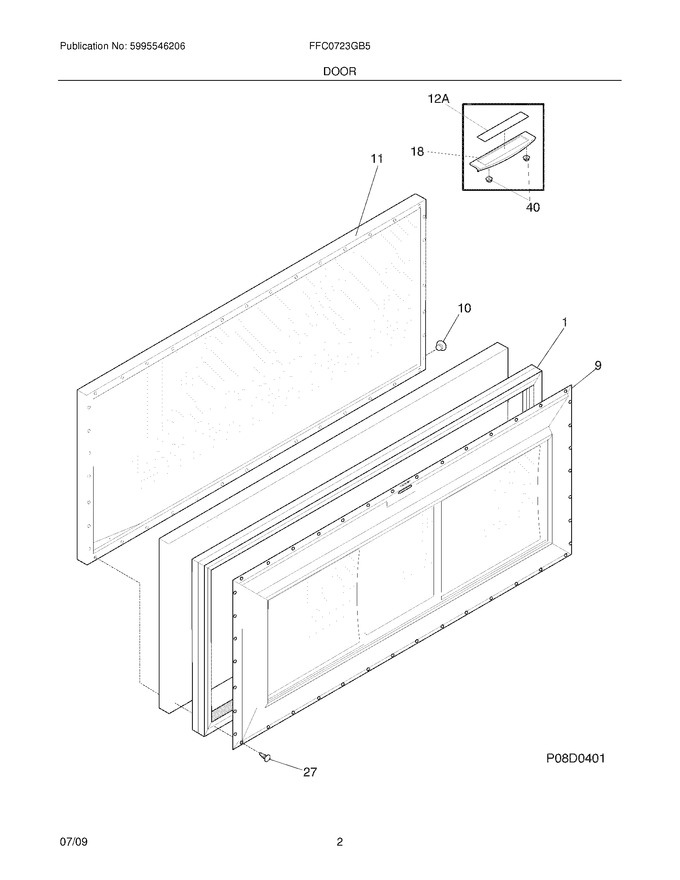

03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216480904		Gasket,door Seal ,black				$ 83.27
9	216061602		Panel-inner Lid,white		Appelez-nous	-
10	216923002		Plug Button,black		Appelez-nous	-
11	216113134		Lid,black				$ 171.10
18	216446603		Handle,black		Appelez-nous	-
27	5303212828		Clip,panel Mtg				$ 16.63
40	216922700		Fastener,.330 Dia Stud ,handle ,(2)				$ 12.05
12A	216816802		Insert-nameplate		Appelez-nous	-
NI	216858001		Screw,8-18x.50 Ab ,no.10			Immediately	$ 10.85
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83
