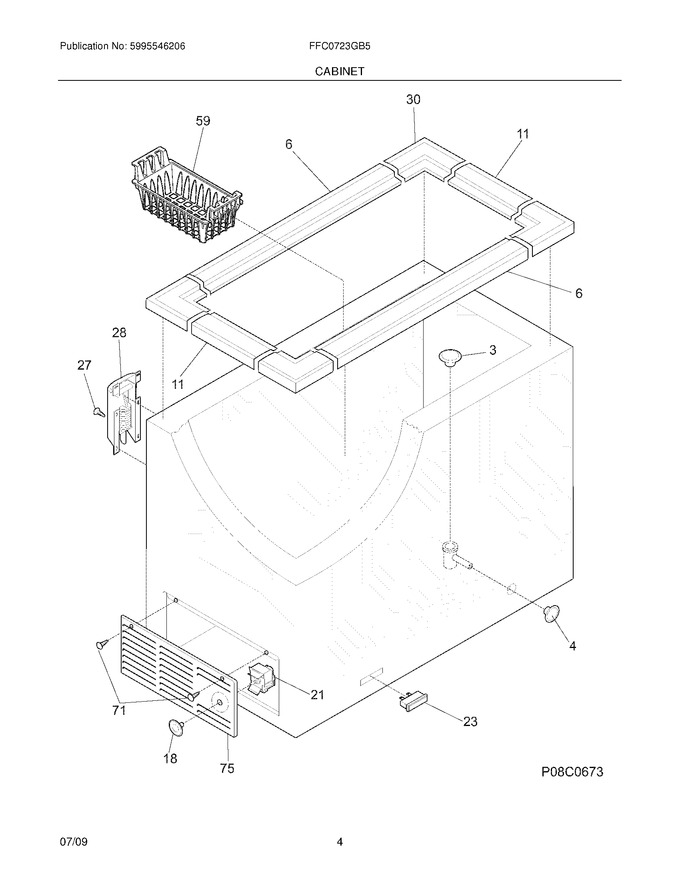

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216502600		Plug-drain,interior			Immediately	$ 17.35
4	297013606		Plug-button,black				$ 11.34
6	216855712		Breaker,black ,side		Appelez-nous	-
11	216855709		Breaker,chest End ,(2)		Appelez-nous	-
18	216873600		Knob-control		Appelez-nous	-
23	297181900		Light,signal ,amber				$ 16.96
27	216337701		Screw,hwh ,10-24 X 0.500 ,swage				$ 14.41
28	216478801		Hinge,black				$ 31.95
30	216105504		Breaker-corners,black		Appelez-nous	-
59	216848200		Basket   (Replaces: 216848203)				$ 53.21
71	5304463819		Screw,ab ,8-18x3/8				$ 1.27
75	216782001		Access Panel,black		Appelez-nous	-
F21	5304496559		Control-temperature   (Replaces: 216787700)			Immediately	$ 44.18
NI	216793915		Energy Guide		Appelez-nous	-
