View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Door/drawer
02 - Gas Controls
03 - Oven/body
04 - Supplemental Information
05 - Top Assembly
SELECT A DIAGRAM
New Model Search:

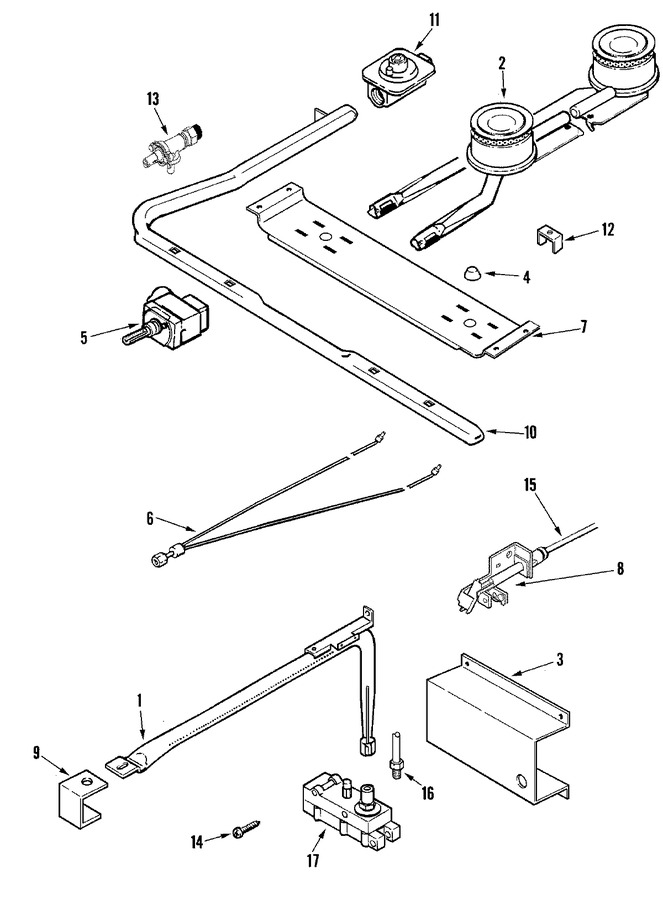

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74010589 | Burner, Bake (20``) | 10 |
|
- | ||||
| 2 | 74010145 | Burner, Top (frt) | 10 |
|
- | ||||
| 2 | W11218700 | Burner, Top (rear) (Replaces: 74010146) | 10 |
|
- | ||||
| 3 | 3807F369-45 | Support, Oven Valve | 10 |
|
- | ||||
| 4 | 8030P001-60 | Cone, Top Lighter----na | 10 |
|
- | ||||
| 5 | 74006182 | Thermostat | 10 |
|
- | ||||
| 5 | 7101P010-60 | Screw, Control | 10 |
|
- | ||||
| 6 | 7505P073-60 | Pilot, Burner (top) | 10 |
|
- | ||||
| 7 | 74010144 | Support, Top Burner | 10 |
|
- | ||||
| 8 | 74006408 | Pilot, Burner | 10 |
|
$ 18.88 | ||||
| 9 | 3807F336-51 | Support, Burner | 10 |
|
- | ||||
| 10 | 74009915 | Pipe, Manifold | 10 |
|
- | ||||
| 11 | 74006282 | Regulator, Pressure | 10 |
|
- | ||||
| 11 | 7510P049-60 | Regulator, Pressure | 10 |
|
- | ||||
| 12 | 3604F122-51 | Shield Top Lighter | 10 |
|
- | ||||
| 13 | 74009414 | Valve,(mueller) | 10 |
|
- | ||||
| 13 | 74009416 | Screw | 10 |
|
- | ||||
| 14 | WP7101P062-60 | Screw No.10 X 2 (Replaces: 7101P062-60) | 10 |
|
$ 7.24 | ||||
| 15 | 74006410 | Tubing, Oven Burner W/nut | 10 |
|
- | ||||
| 16 | 74006411 | Tubing, Oven (w/nut) | 10 |
|
- | ||||
| 17 | 74006409 | Valve, Oven | 10 |
|
- | ||||
| 17 | 74010590 | Valve, Safety (20``) | 11 |
|
$ 38.10 | ||||
| NI | 12002560 | Conversion Kit (lp) | 11 |
|
$ 41.64 |
