View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Door/drawer
02 - Gas Controls
03 - Oven/body
04 - Supplemental Information
05 - Top Assembly
SELECT A DIAGRAM
New Model Search:

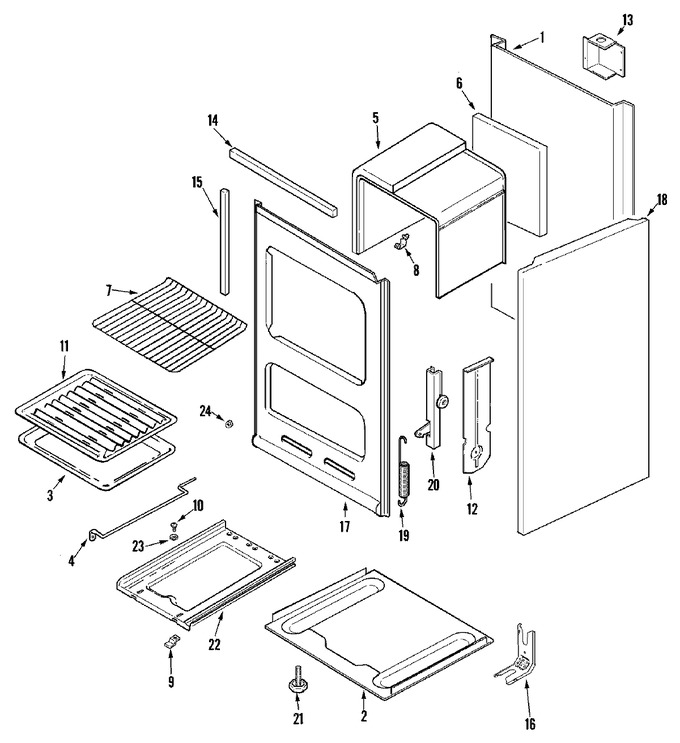

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74009920 | Back, Main (gas) | 10 |
|
- | ||||
| 2 | 74003973 | Base, Main | 10 |
|
- | ||||
| 3 | 4396923 | Pan, Broiler (Replaces: 3401F016-19) | 10 |
|
Immediately | $ 52.04 | |||
| 4 | 3808F007-61 | Rod, Broiler Runner (lt) | 10 |
|
- | ||||
| 4 | 3808F008-61 | Rod, Broiler Runner (rt) | 10 |
|
- | ||||
| 4 | WP3400074 | Screw (Replaces: 7101P068-60) | 10 |
|
$ 6.47 | ||||
| 5 | 74009273 | Insulation, Oven Wrap | 10 |
|
- | ||||
| 5 | 7002P083-60 | Insulation, Oven Wrap | 10 |
|
- | ||||
| 6 | 7002P091-60 | Insulation, Oven Back | 10 |
|
- | ||||
| 7 | 7801P019-60 | Rack, Oven | 10 |
|
- | ||||
| 8 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 10 |
|
Immediately | $ 11.07 | |||
| 9 | 3819F011-61 | Clip, Oven Bottom Pl | 10 |
|
- | ||||
| 11 | 3413F007-19 | Insert Pan | 10 |
|
- | ||||
| 12 | 3818F034-51 | Channel Air Side | 10 |
|
- | ||||
| 13 | 4005F326-45 | Cover Wire Assy | 10 |
|
- | ||||
| 14 | 7212P014-60 | Seal, Door (top) | 10 |
|
$ 48.10 | ||||
| 15 | 7212P015-60 | Seal, Door (side) | 10 |
|
$ 45.93 | ||||
| 16 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 74005564) | 10 |
|
Immediately | $ 4.69 | |||
| 16 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 10 |
|
$ 26.33 | ||||
| 16 | WP7101P485-60 | Screw (Replaces: 7101P352-60) | 10 |
|
$ 26.33 | ||||
| 17 | 74007535 | Front, Main (gas) | 10 |
|
- | ||||
| 17 | M0282009 | Nut 10-24 (Replaces: 7103P071-60) | 10 |
|
$ 12.06 | ||||
| 17 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 10 |
|
$ 6.77 | ||||
| 18 | 74006391 | Panel, Side (bsq) | 10 |
|
- | ||||
| 19 | 7803P032-60 | Spring, Oven Door | 10 |
|
$ 4.83 | ||||
| 20 | 3807F290-34 | Support, Hinge (lt) | 10 |
|
- | ||||
| 20 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 10 |
|
$ 6.77 | ||||
| 20 | 3807F291-34 | Support, Hinge (rt) | 10 |
|
- | ||||
| 20 | M0282009 | Nut (Replaces: 7103P064-60) | 10 |
|
$ 12.06 | ||||
| 21 | W11665456 | Leg, Leveling (Replaces: 74002373) | 10 |
|
Immediately | $ 25.30 | |||
| 22 | 5720A003-23 | Plate, Oven Bottom | 10 |
|
- | ||||
| 23 | 7109P015-60 | Washer | 10 |
|
- | ||||
| 24 | 7103P080-60 | Nut, Expansion | 10 |
|
- | ||||
| NI | WP4159193 | Screw (Replaces: 7101P336-60) | 10 |
|
$ 4.29 | ||||
| NI | 71001403 | Washer, Alum | 10 |
|
- |
