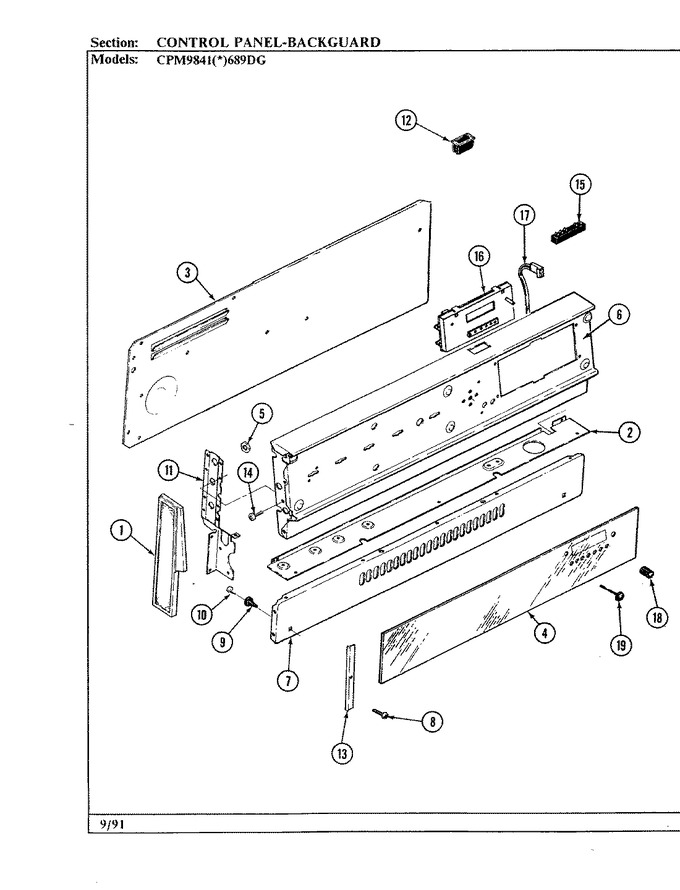

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7726P032-60 | Trim, Bkgd End (rt) | 01 |
|
- | ||||
| 1 | 7726P031-60 | Trim, Bkgd End (lt) | 01 |
|
- | ||||
| 2 | 4005F155-80 | Cover, Bottom Bkdg Wire | 01 |
|
- | ||||
| 3 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 01 |
|
$ 6.98 | ||||
| 3 | 4005F393-80 | Cover Bkgd Wire | 01 |
|
- | ||||
| 3 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 4 | 7910P154-60 | Glass, Control Panel | 01 |
|
- | ||||
| 4 | 7910P161-60 | Glass Backguard | 01 |
|
- | ||||
| 5 | 7103P053-60 | Nut, Push-on End Cap | 01 |
|
- | ||||
| 6 | 2601W328-84 | Panel, Control (almond) | 01 |
|
- | ||||
| 6 | 2601W328-81 | Panel, Control (white) | 01 |
|
- | ||||
| 7 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 01 |
|
Immediately | $ 6.85 | |||
| 7 | 2620W053-90 | Backguard Panel | 01 |
|
- | ||||
| 8 | 7101P008-60 | Screw | 01 |
|
- | ||||
| 9 | 7105P002-60 | Support, Main Top | 01 |
|
- | ||||
| 10 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 | |||
| 11 | WPW10068250 | Screw (Replaces: 7101P074-60) | 01 |
|
$ 3.66 | ||||
| 11 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 01 |
|
Immediately | $ 6.85 | |||
| 11 | 3807F348-51 | Support, Bkgd End Lf | 01 |
|
- | ||||
| 11 | 3807F349-51 | Support, Bkgd End Rt | 01 |
|
- | ||||
| 12 | 7403P067-60 | Switch, Rocker (blk) | 01 |
|
$ 91.35 | ||||
| 13 | 7742P009-60 | Trim, Retainer Glass | 01 |
|
- | ||||
| 14 | WPW10068250 | Screw (Replaces: 7101P074-60) | 01 |
|
$ 3.66 | ||||
| 15 | 7401P015-60 | Block, Terminal | 01 |
|
- | ||||
| 16 | 7601P181-60 | Clock, Electronic | 01 |
|
- | ||||
| 16 | WP8312P015-60 | Shaft, Bit Generator (Replaces: 8312P015-60) | 01 |
|
$ 0.81 | ||||
| 17 | 5170P100-60 | Harness, Oven Sensor | 01 |
|
- | ||||
| 18 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P431-60) | 01 |
|
$ 12.13 | ||||
| 18 | WP7711P492-60 | Knob, Clock (wht) (Replaces: 7711P432-60) | 01 |
|
$ 12.13 | ||||
| 19 | 7711P453-60 | Button, Ctrl Set | 01 |
|
- | ||||
| 19 | 7711P452-60 | Button, Clock Set | 01 |
|
- |
