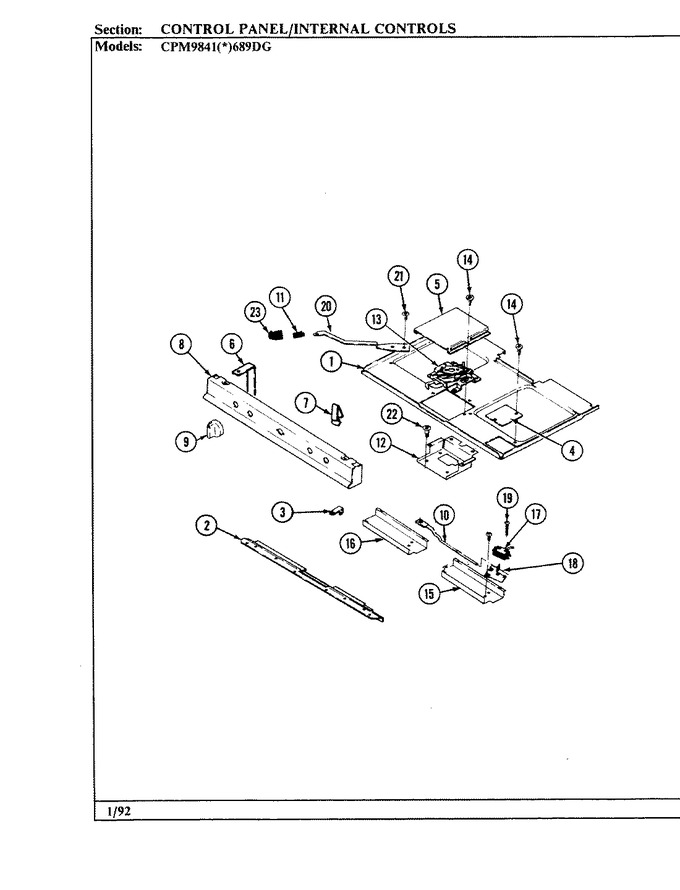

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 1 | 4011F200-80 | Bottom Burner Box | 01 |
|
- | ||||
| 2 | 4012F020-80 | Front, Burn Box Bott | 01 |
|
- | ||||
| 2 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 2 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 01 |
|
$ 15.94 | ||||
| 3 | 3801F049-34 | Bracket,control Panel (l) | 01 |
|
- | ||||
| 3 | 3801F047-34 | Bracket,control Panel (r) | 01 |
|
- | ||||
| 3 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 4 | 4005F139-51 | Cover, Switch | 01 |
|
- | ||||
| 5 | 4005F137-80 | Cover, Catch Assy. | 01 |
|
- | ||||
| 6 | 3807F431-45 | Support, Main Top | 01 |
|
- | ||||
| 7 | 8003P003-60 | Bumper | 01 |
|
- | ||||
| 7 | 7112P087-60 | Clip, Top Locking | 01 |
|
- | ||||
| 7 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 01 |
|
$ 6.98 | ||||
| 8 | 7712P086-60 | Panel, Manifold (white) | 01 |
|
- | ||||
| 8 | 3604F132-51 | Shield, Heat | 01 |
|
- | ||||
| 8 | WP4159193 | Screw (Replaces: 7118P004-60) | 01 |
|
$ 4.29 | ||||
| 8 | 7712A057-60 | Trim Assy, Manifold | 01 |
|
- | ||||
| 9 | 7711P343-60 | Knob, Valve (blk) | 01 |
|
- | ||||
| 10 | 7807P012-60 | Link, Door Lock | 01 |
|
- | ||||
| 11 | 7112P003-60 | Clip, Latch Handle | 01 |
|
- | ||||
| 12 | 3807F408-45 | Support, Catch Assy. | 01 |
|
- | ||||
| 13 | 8002P021-60 | Catch, Door Lock | 01 |
|
- | ||||
| 13 | 3604F159-45 | Shield Insulation, Catch | 01 |
|
- | ||||
| 14 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 15 | 3818F027-45 | Channel, Switch | 01 |
|
- | ||||
| 16 | 3818F049-45 | Channel, Air | 01 |
|
- | ||||
| 17 | 7403P099-60 | Switch, Ovn Lock Asy----na | 01 |
|
- | ||||
| 17 | 7003P019-60 | Insulation, Switch (upper) | 01 |
|
- | ||||
| 17 | 7003P039-60 | Insulation, Switch | 01 |
|
- | ||||
| 18 | 3807F434-45 | Support, Lock Switch | 01 |
|
- | ||||
| 19 | 7101P031-60 | Screw | 01 |
|
- | ||||
| 20 | 8009P019-60 | Lever, Door Lock | 01 |
|
- | ||||
| 21 | WP4159193 | Screw (Replaces: 7101P018-60) | 01 |
|
$ 4.29 | ||||
| 22 | 7116P003-60 | Bolt | 01 |
|
- | ||||
| 23 | 7701P089-60 | Handle, Latch (wht) | 01 |
|
- | ||||
| 23 | 7701P088-60 | Handle, Latch (blk) | 01 |
|
- |
