SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet


07 - System

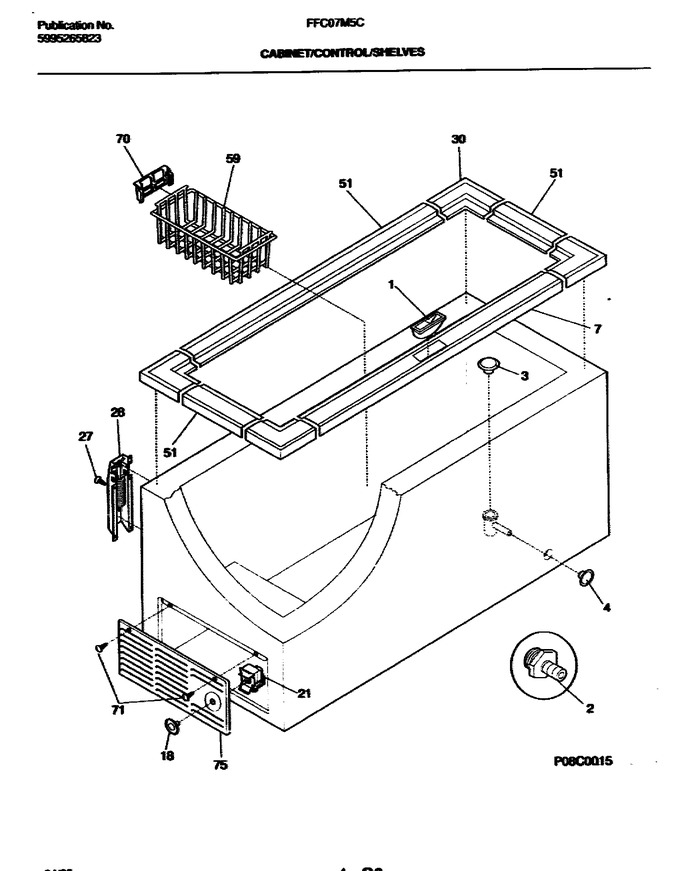

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216117700		Support Lock		Appelez-nous	-
2	216269500		Adapter, Drain				$ 14.81
3	5306593887		Plug-drain, White		Appelez-nous	-
4	216073900		Plug, Drain		Appelez-nous	-
7	216117600		Breaker, Lock Side		Appelez-nous	-
18	216034505		Knob, Control, White		Appelez-nous	-
27	5309950602		Screw Hinge				$ 5.30
28	216119101		Hinge Assy		Appelez-nous	-
30	216105500		Breaker, White, Corners				$ 46.83
51	216117500		Breakers, White, Hinge/side		Appelez-nous	-
59	216142600		Basket		Appelez-nous	-
70	216375100		Handle, Teal, Basket		Appelez-nous	-
71	08006547		Screw		Appelez-nous	-
75	216329402		Panel-access,white		Appelez-nous	-
F21	216375500		Control-temperature		Appelez-nous	-
NI	5303321319		Touch-up Paint-white   (Replaces: 5303305324)			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
