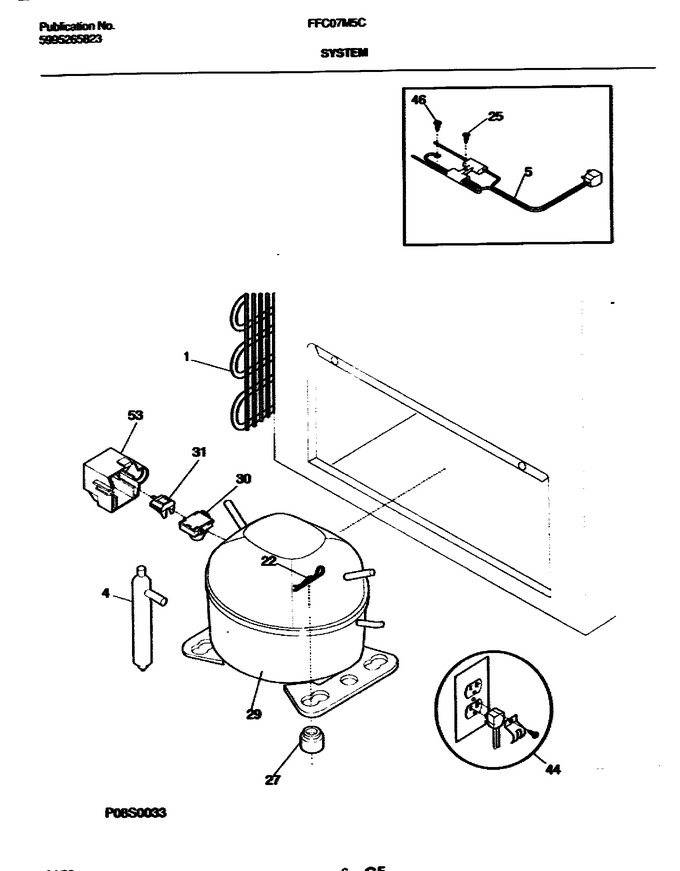

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	216375400		Harness-wire		Appelez-nous	-
22	216056400		Clip, Spring Mtg		Appelez-nous	-
25	216022800		Screw, Washer Head, 8, 18 X 1/2		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
44	08016777		Clamp, Pwr Cord Assy		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
53	216347800		Cover, Compressor		Appelez-nous	-
F1	5303925316		Condenser		Appelez-nous	-
F29	5304443412		Compressor, Service   (Replaces: 5303925314)				$ 856.23
F30	216347700		Starter, Ptc		Appelez-nous	-
F31	216100105		Overload				$ 137.92
F4	5303305677		Drier-filter			Immediately	$ 31.67

    View Diagram in Separate Window       Print Part List
