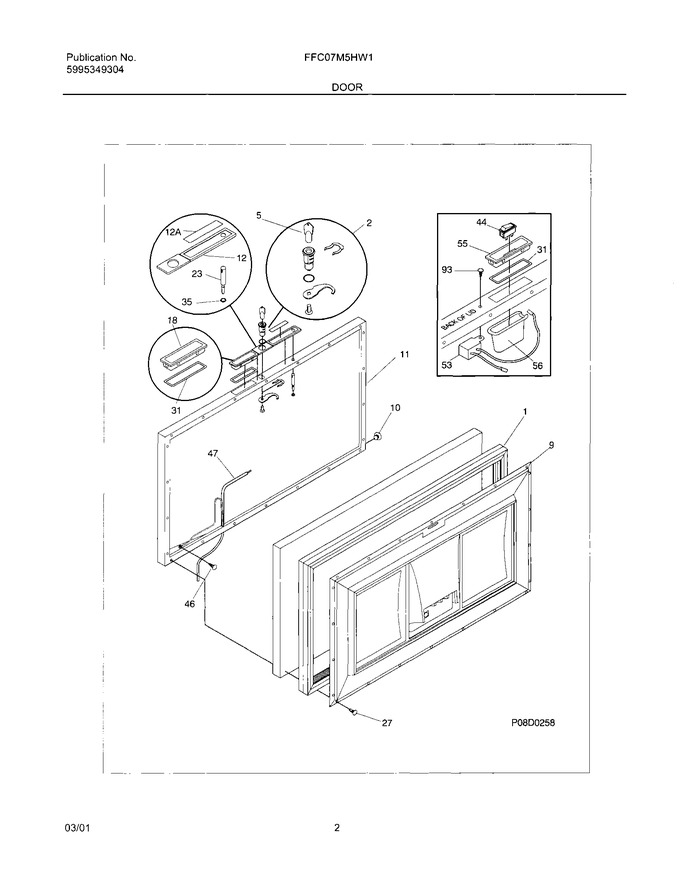

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216480901		Gasket-door,white				$ 107.26
2	5303925107		Lock Assy		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
9	216061600		Panel-inner Door/lid, White				$ 142.75
10	216141101		Plug Button, White				$ 2.57
11	216113122		Panel-outer Door/lid,white		Appelez-nous	-
12	216373000		Frame-nameplate				$ 4.04
12	316095402		Label-nameplate,frigidaire ,white				$ 148.59
18	216205004		Handle,white		Appelez-nous	-
23	216212700		Light-signal,amber		Appelez-nous	-
27	5303212828		Clip,panel				$ 16.63
31	08009392		Gasket, White		Appelez-nous	-
35	5303297015		Washer, Signal Light		Appelez-nous	-
44	5303017178		Switch-rocker		Appelez-nous	-
46	216707800		Screw,ph ,8-32 X 1/2 ,wiring Harness		Appelez-nous	-
47	216552700		Harness,electrical		Appelez-nous	-
53	5303208483		Buzzer, Alarm		Appelez-nous	-
55	216164000		Housing, Switch		Appelez-nous	-
56	216694200		Sealing Cap		Appelez-nous	-
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
NI	216140200		Handle, Recessed, White		Appelez-nous	-
