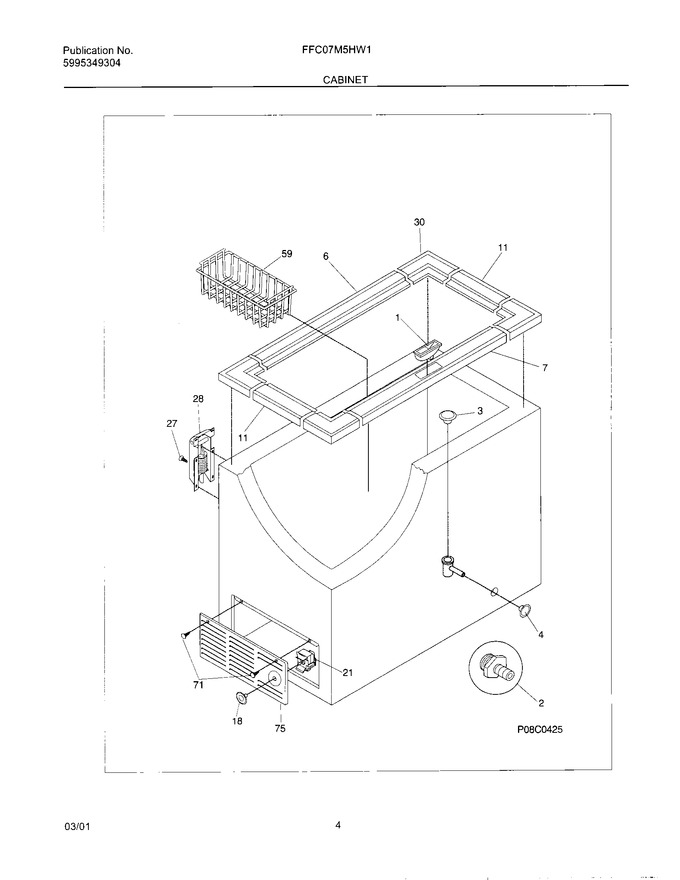

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216117700		Catch-lock		Appelez-nous	-
2	216269500		Adapter, Drain				$ 14.81
3	216502600		Plug-drain,interior ,interior			Immediately	$ 17.35
4	216073900		Plug-drain,exterior		Appelez-nous	-
6	216112800		Breaker-hinge, White		Appelez-nous	-
7	216112900		Breaker-lock Side		Appelez-nous	-
11	216105600		Breaker-ends, White		Appelez-nous	-
18	216707200		Knob-control				$ 44.10
21	216714500		Control-temperature				$ 132.04
27	216337700		Screw,hex Washer Head `10-24 X 0.500		Appelez-nous	-
28	216478800		Hinge Assy		Appelez-nous	-
30	216105500		Breaker-corners,white				$ 46.83
59	216848200		Basket   (Replaces: 216078600)				$ 53.21
71	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
75	216329402		Panel-access,white		Appelez-nous	-
NI	216269500		Adapter, Drain				$ 14.81
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
