View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - System
New Model Search:

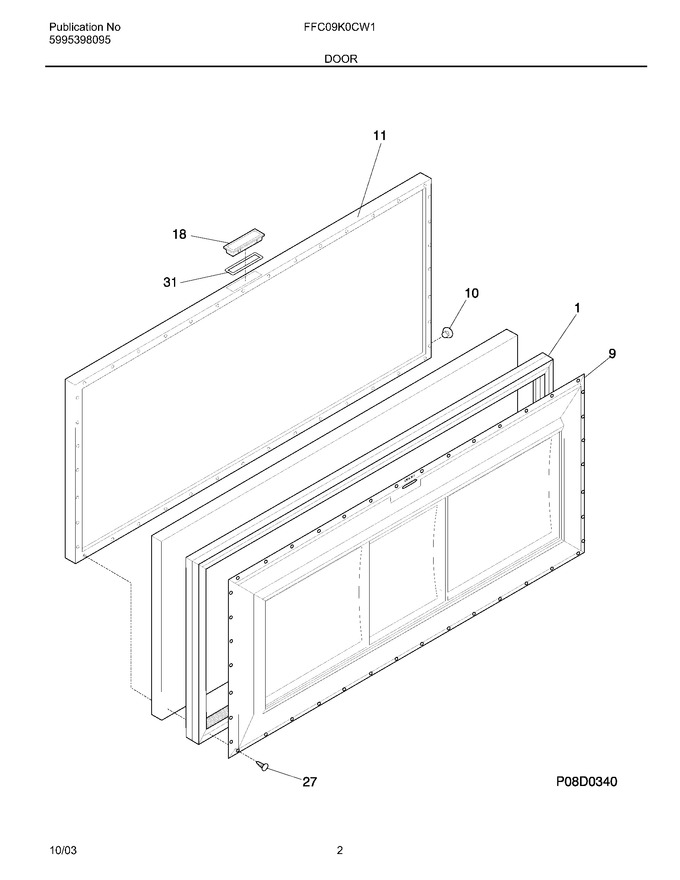

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216481001 | Gasket-door, White |
|
$ 202.00 | |||||
| 9 | 216061802 | Panel-inner Lid,white |
|
$ 198.24 | |||||
| 10 | 216923001 | Plug Button,1/4``,white |
|
$ 9.87 | |||||
| 11 | 216117906 | Panel-outer Door/lid, White |
|
- | |||||
| 18 | 216140200 | Handle, Recessed, White |
|
- | |||||
| 27 | 5303212828 | Clip,panel Mtg |
|
$ 16.63 | |||||
| 31 | 08009392 | Gasket, White |
|
- | |||||
| NI | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 |
