SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

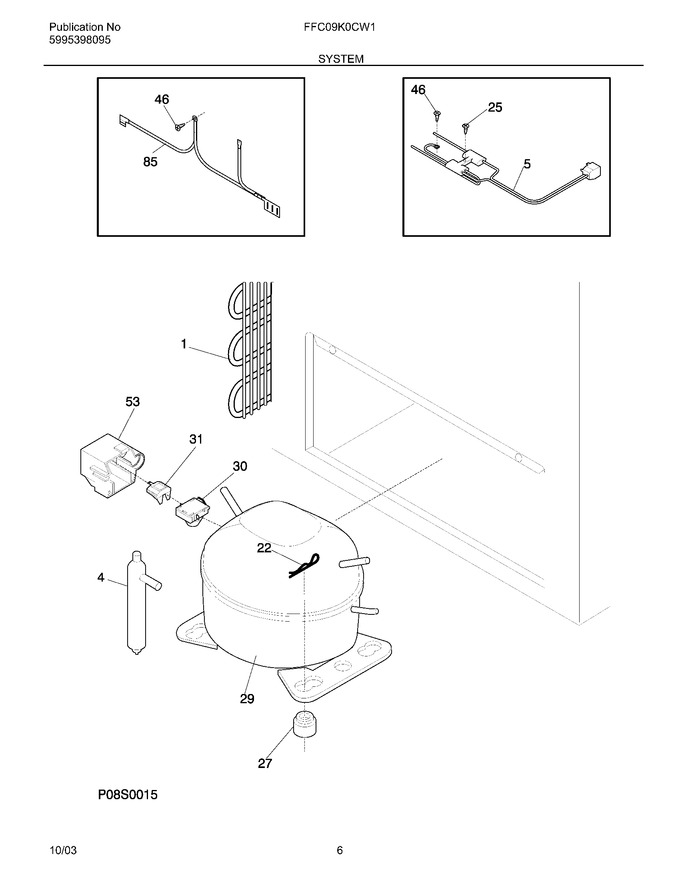

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
22	216056400		Clip,compressor Mtg ,spring		Appelez-nous	-
25	216707700		Screw,8-18 X 1/2		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	216888500		Starter,relay				$ 104.53
31	216100113		Overload Protector				$ 169.63
46	216707800		Screw,ph ,8-32 X 1/2 ,wiring Harness		Appelez-nous	-
53	216347800		Cover Terminal,cover-comp Term		Appelez-nous	-
85	216818300		Wire-ground		Appelez-nous	-
F1	5300120781		Condenser		Appelez-nous	-
F29	216888300		Compressor,w/o Electricals		Appelez-nous	-
F5	216551900		Harness-ext,main		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
