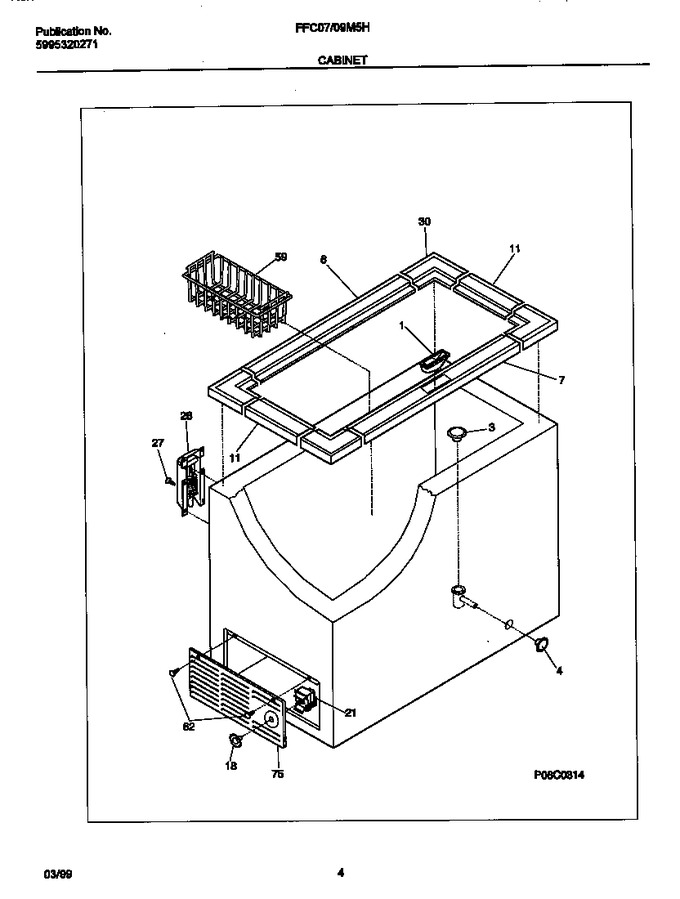

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216117700		Support Lock		Appelez-nous	-
2	216269500		Adapter, Drain				$ 14.81
3	216502600		Plug-drain,exterior			Immediately	$ 17.35
4	216073900		Plug-drain,interior		Appelez-nous	-
6	216117500		Breaker-hinge Side, White		Appelez-nous	-
7	216117600		Breaker, Lock Side		Appelez-nous	-
11	216105600		Breaker-ends, White		Appelez-nous	-
18	216591602		Knob,temp Control		Appelez-nous	-
21	216375500		Control-temperature		Appelez-nous	-
27	216629601		Screw-hinge   (Replaces: 216629600)				$ 13.01
28	216478800		Hinge Assy		Appelez-nous	-
30	216105500		Breaker-corners,white				$ 46.83
59	216848200		Basket   (Replaces: 216078600)				$ 53.21
71	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
75	216329402		Panel-access,white		Appelez-nous	-
*83321	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
