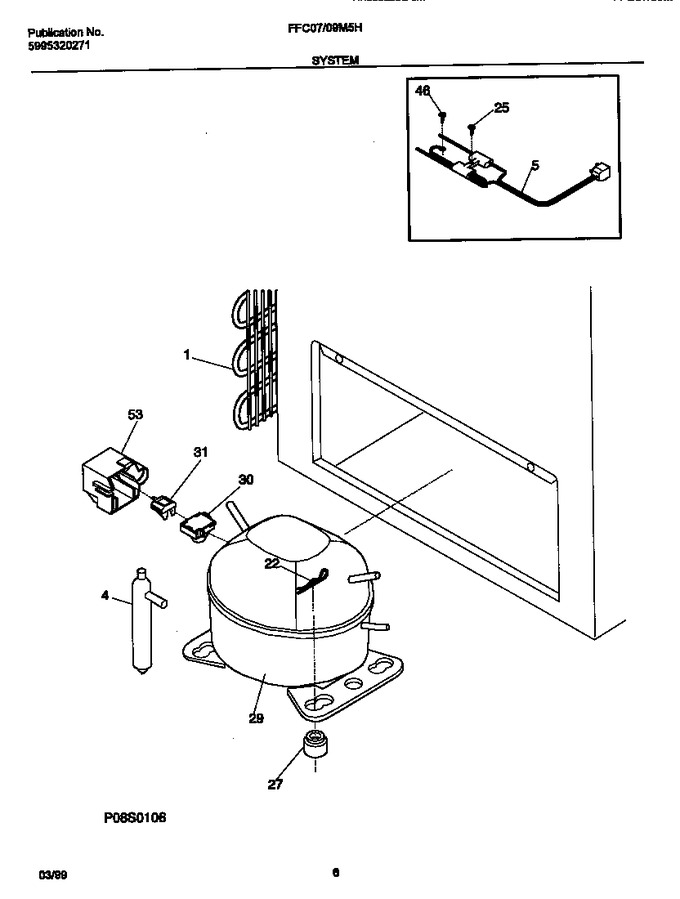

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300120781		Condenser		Appelez-nous	-
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
5	216552700		Harness,electrical		Appelez-nous	-
22	216056400		Clip, Spring Mtg		Appelez-nous	-
25	216022800		Screw, Washer Head, 8, 18 X 1/2		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	216511200		Starter-ptc		Appelez-nous	-
31	216100113		Overload Protector				$ 169.63
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
53	216347800		Cover, Compressor		Appelez-nous	-
*83322	216478900		Fastener, Energy Guide		Appelez-nous	-
29A	5304443412		Compressor W/electricals   (Replaces: 5303925442)				$ 856.23
29B	5304443412		Compressor,r134a ,w/ Electricals   (Replaces: 216510900)				$ 856.23

    View Diagram in Separate Window       Print Part List
