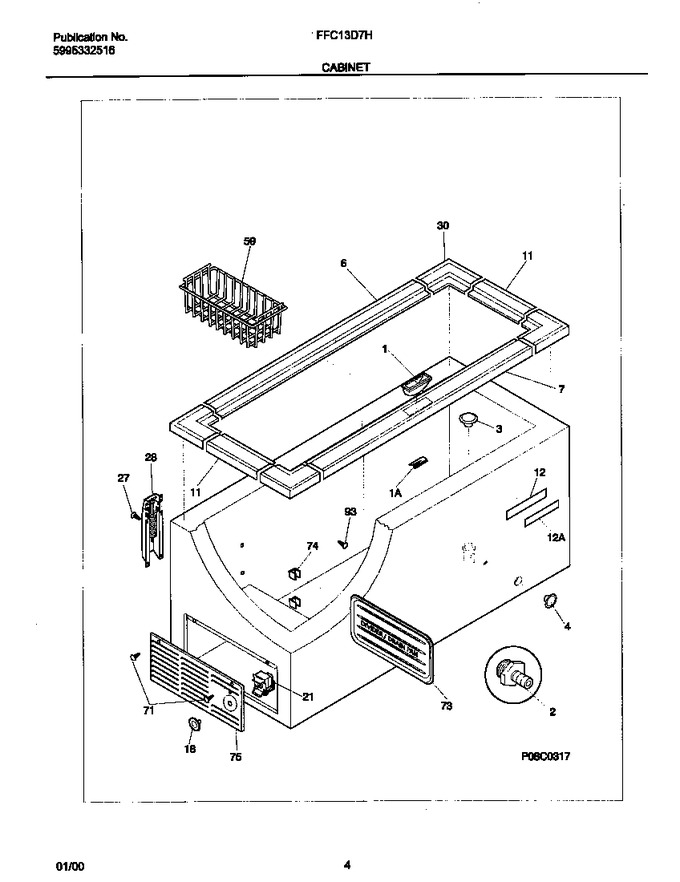

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216080800		Support, Lock		Appelez-nous	-
1	5303208488		Latch, Door		Appelez-nous	-
2	216269500		Adapter, Drain				$ 14.81
3	216502600		Plug-drain,interior			Immediately	$ 17.35
4	216073900		Plug-drain,exterior		Appelez-nous	-
6	216110900		Breaker		Appelez-nous	-
7	216111500		Breaker, Lock Side		Appelez-nous	-
11	216110800		Breaker,white ,ends		Appelez-nous	-
12	216373000		Frame-nameplate				$ 4.04
12	316095402		Nameplate,white				$ 148.59
18	216591602		Knob,temp Control		Appelez-nous	-
21	216562400		Control-temperature				$ 222.34
27	216629601		Screw-hinge   (Replaces: 216629600)				$ 13.01
28	216039600		Hinge		Appelez-nous	-
30	216110700		Breaker,white ,corners				$ 28.45
59	216080300		Basket		Appelez-nous	-
71	5303302714		Screw, 8, 18 X 3/4, (2)		Appelez-nous	-
73	216128200		Divider-drain Pan		Appelez-nous	-
74	5306594584		Support, Shelf				$ 19.80
75	216034301		Panel-access, White				$ 103.01
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
*68842	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
