New Model Search:

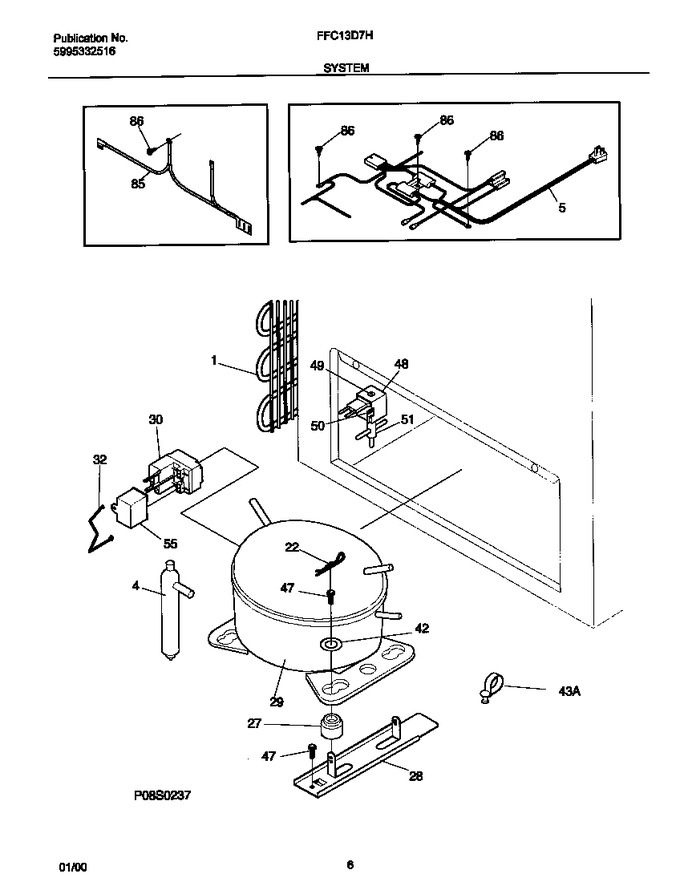

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303925238 | Condenser |
|
$ 467.78 | |||||
| 4 | 5303305677 | Drier-filter (Replaces: 216634500) |
|
Immediately | $ 31.67 | ||||
| 5 | 216710700 | Harness-main |
|
- | |||||
| 22 | 216056400 | Clip, Spring Mtg |
|
- | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 28 | 5303212615 | Support, Compressor |
|
- | |||||
| 29 | 216511100 | Compressor,w/o Electricals |
|
- | |||||
| 30 | 216649301 | Controller |
|
- | |||||
| 32 | 216649200 | Clip,controller |
|
$ 6.30 | |||||
| 42 | 216232700 | Washer-flat |
|
- | |||||
| 43 | 5303313650 | Clip-cord |
|
- | |||||
| 47 | 216337700 | Screw,hex Washer Head `10-24 X 0.500 |
|
- | |||||
| 48 | 3201514 | Solenoid |
|
- | |||||
| 49 | 3201513 | Clip, Valve |
|
- | |||||
| 50 | 216533700 | Wire-ground,solenoid |
|
- | |||||
| 51 | 216161900 | Valve, Formed |
|
- | |||||
| 55 | 5304464438 | Capacitor-run,220 Vac ,15 Microfarad (Replaces: 218909901) |
|
Immediately | $ 35.38 | ||||
| 85 | 216533500 | Wire,ground |
|
- | |||||
| 86 | 216036600 | Screw, Rwhd (gx, Ca), 8, 32 X 1/2 |
|
- | |||||
| *68843 | 216478900 | Fastener, Energy Guide |
|
- |
