Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 216481101 Gasket-door, White Special Order $ 224.81

9 216057406 Panel-lid Appelez-nous -
10 216141101 Plug Button, White Special Order $ 2.57

11 216129800 Panel-outer Door/lid,white Appelez-nous -
18 216140200 Handle, Recessed, White Appelez-nous -
27 5303212828 Clip,panel Mtg Special Order $ 16.63

31 08009392 Gasket, White Appelez-nous -
NI 5303917276 Insulation Special Order $ 330.91


    View Diagram in Separate Window     Print Icon   Print Part List

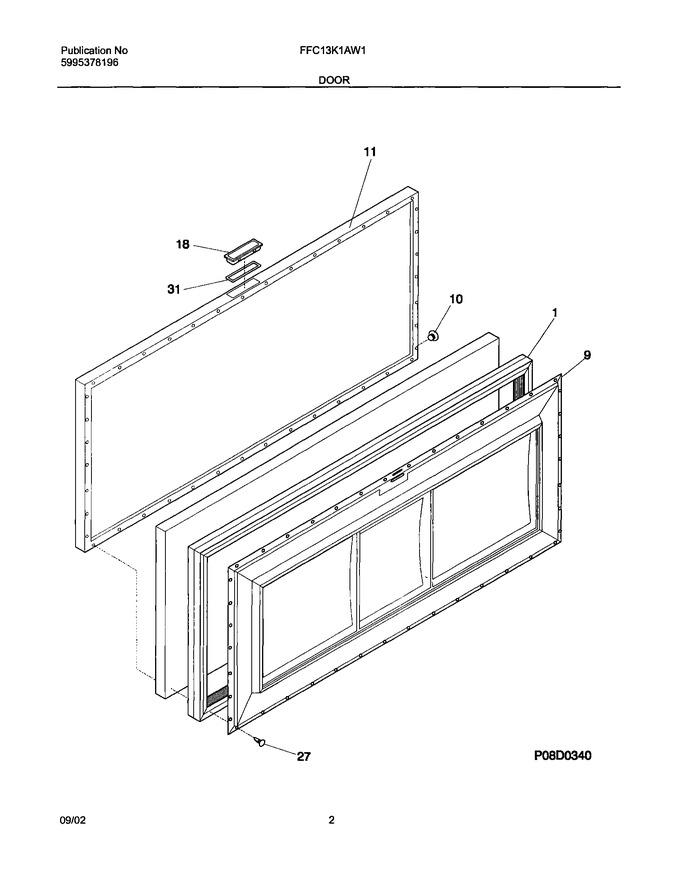

Diagram for FFC13K1AW1
