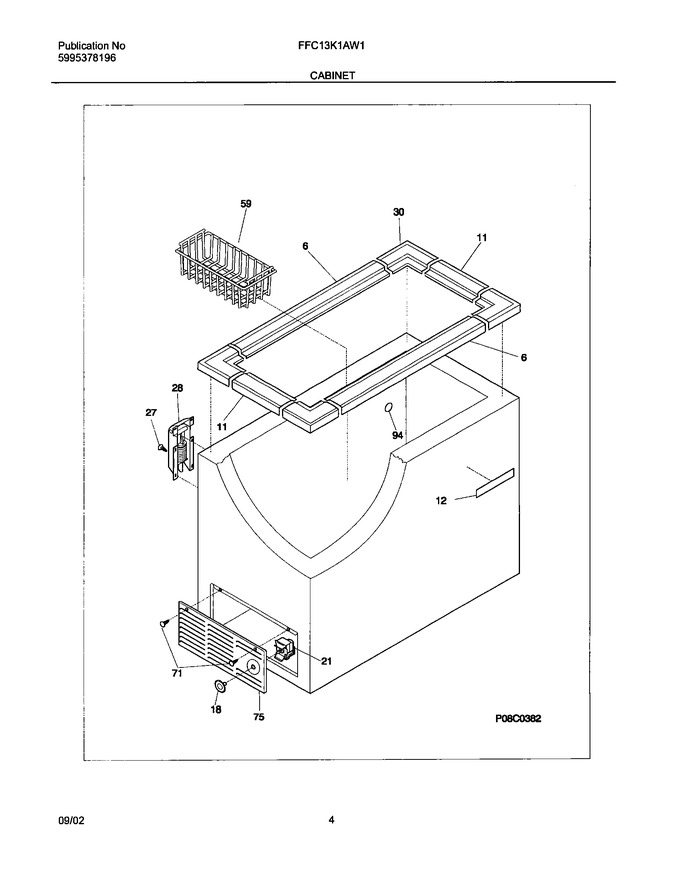

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	216110900		Breaker		Appelez-nous	-
11	216110800		Breaker,chest End ,(2)		Appelez-nous	-
12	241808601		Label-nameplate,white   (Replaces: 240415201)				$ 12.69
18	216707200		Knob,temp Control				$ 44.10
27	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping   (Replaces: 216629600)				$ 13.01
28	216039600		Hinge		Appelez-nous	-
30	216110700		Breaker Corners				$ 28.45
59	216080300		Basket		Appelez-nous	-
71	5303302714		Screw, 8, 18 X 3/4, (2)		Appelez-nous	-
75	216034301		Panel-access, White				$ 103.01
94	216140400		Lens,frost Indicator ,blue				$ 1.42
F21	216714601		Control Temperature				$ 143.87
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
