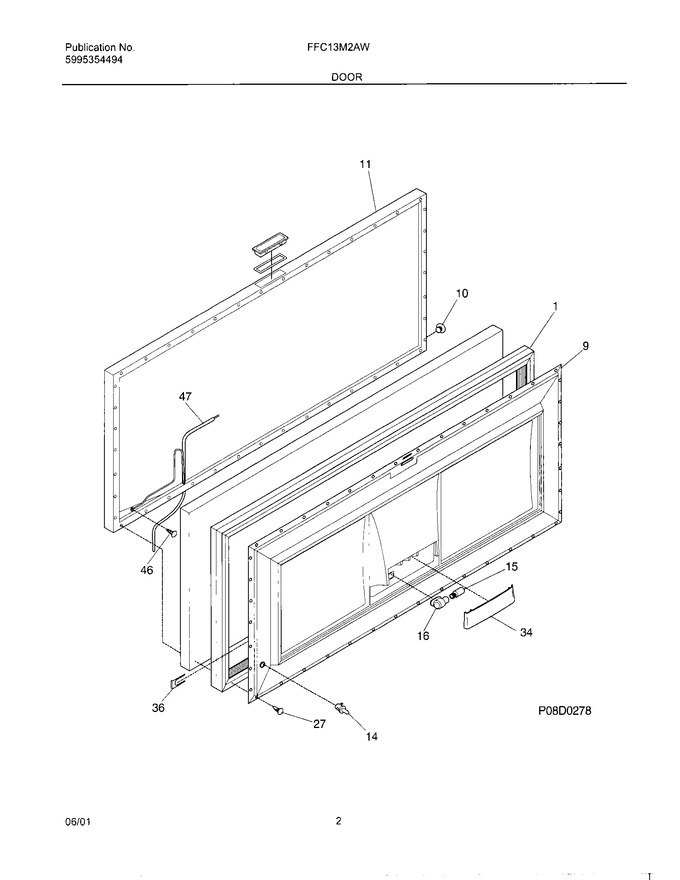

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481101		Gasket-door, White				$ 224.81
9	216686606		Panel-lid		Appelez-nous	-
10	216141101		Plug Button, White				$ 2.57
11	216129819		Panel-lid		Appelez-nous	-
14	297243800		Switch-light Plunger   (Replaces: 216472300)				$ 36.68
15	5304517886		Lamp,light Bulb ,40 W ,120 V   (Replaces: 216608600)			Immediately	$ 73.06
16	216684000		Socket-light/lamp		Appelez-nous	-
27	5303212828		Clip,panel				$ 16.63
34	216160400		Shield-light		Appelez-nous	-
36	5306599968		Plate, Backup, Light Switch		Appelez-nous	-
46	216707800		Screw,ph ,8-32 X 1/2 ,wiring Harness		Appelez-nous	-
47	216792200		Harness-lid/defrost		Appelez-nous	-
NI	5303917276		Insulation				$ 330.91

    View Diagram in Separate Window       Print Part List
