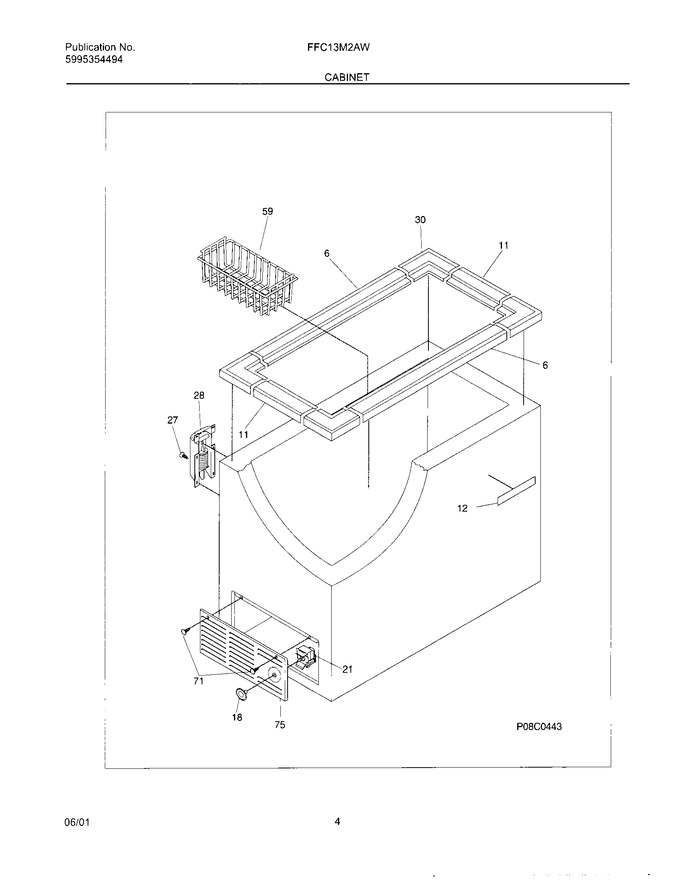

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	216110900		Breaker		Appelez-nous	-
11	216110800		Breaker,white ,ends		Appelez-nous	-
12	241808601		Label-nameplate,white   (Replaces: 240415201)				$ 12.69
18	216707200		Knob-control Cold				$ 44.10
21	216714600		Control-temperature				$ 132.30
27	216629601		Screw-hinge   (Replaces: 216629600)				$ 13.01
28	216039600		Hinge		Appelez-nous	-
30	216110700		Breaker,white ,corners				$ 28.45
59	216080300		Basket		Appelez-nous	-
71	5303302714		Screw, 8, 18 X 3/4, (2)		Appelez-nous	-
75	216034301		Panel-access, White				$ 103.01
NI	216802800		Owners Guide				$ 21.98
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
