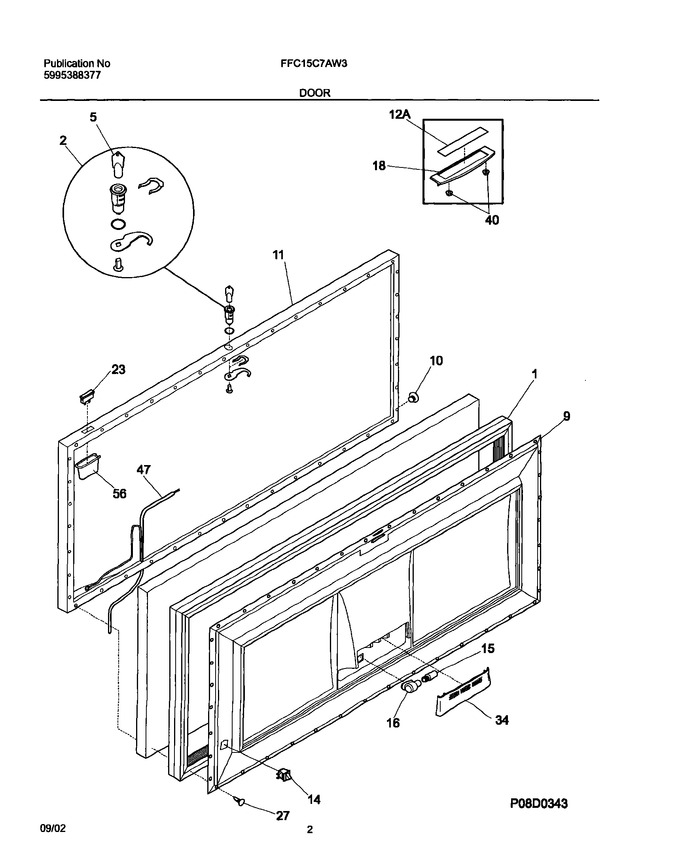

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481211		Gasket-door, White   (Replaces: 216481201)				$ 204.03
2	5303925107		Lock Assy		Appelez-nous	-
9	216829104		Panel-lid				$ 173.57
10	216141101		Plug Button, White				$ 2.57
11	216129920		Lid,white				$ 313.11
14	216822900		Switch,light/lamp ,ramp			Immediately	$ 70.16
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
16	297139501		Socket,light/lamp ,25 W   (Replaces: 216817600)				$ 19.52
18	216446600		Handle				$ 43.42
23	5308002706		Light-signal,amber				$ 39.11
27	5303212828		Clip,panel Mtg				$ 16.63
34	5303296969		Shield,lid Lamp		Appelez-nous	-
40	5309948647		Fastener, Handle		Appelez-nous	-
47	5304504154		Wiring Harness,lid/defrost ,with Light   (Replaces: 216819900)				$ 85.76
56	216694200		Cap,sig Light Seal		Appelez-nous	-
12A	216816801		Insert-nameplate				$ 29.61
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
NI	5303917276		Insulation				$ 330.91
