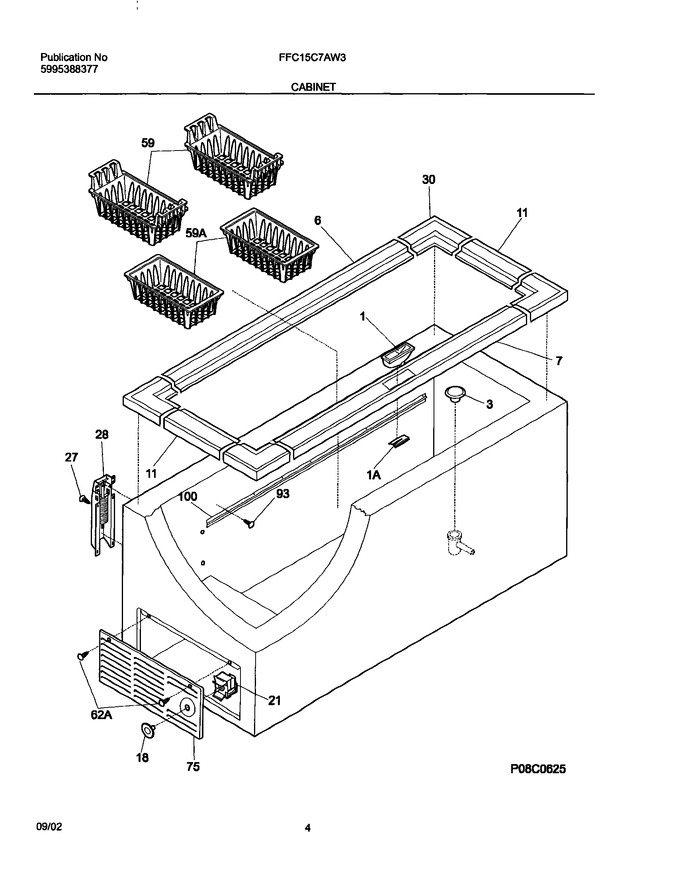

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216909800		Catch-lock,white				$ 54.92
3	216502600		Plug-drain,interior			Immediately	$ 17.35
6	216111000		Breaker,plain ,white		Appelez-nous	-
7	216111600		Breaker, Lock Side		Appelez-nous	-
11	216110800		Breaker,chest End ,(2)		Appelez-nous	-
18	216707200		Knob,temp Control				$ 44.10
27	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping   (Replaces: 216629600)				$ 13.01
28	297321900		Hinge   (Replaces: 216035200)				$ 90.01
30	216110700		Breaker Corners				$ 28.45
59	216867300		Basket,upper ,(2)		Appelez-nous	-
75	216034301		Panel-access, White				$ 103.01
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
100	216654400		Track-basket		Appelez-nous	-
1A	216818900		Support,lock Catch Clip				$ 12.65
59A	216867400		Basket,lower ,(2)				$ 61.09
62A	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
F21	216714601		Control Temperature				$ 143.87
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NI	216794201		Energy Guide		Appelez-nous	-
