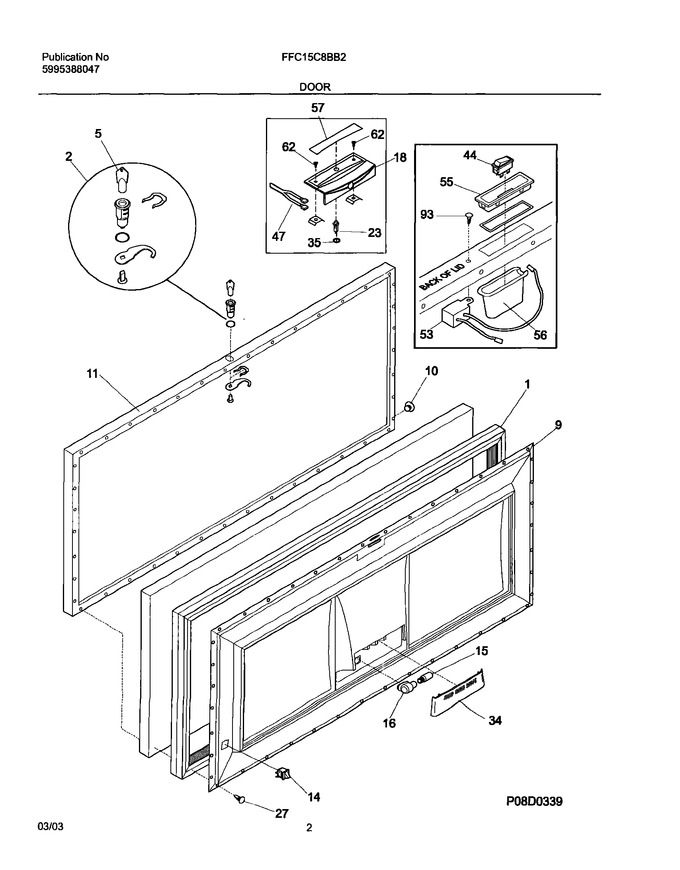

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481204		Gasket,black ,door		Appelez-nous	-
2	5303925107		Lock Assy		Appelez-nous	-
9	216829104		Panel-lid				$ 173.57
10	216141100		Plug-foam Hole,black		Appelez-nous	-
11	216129929		Lid,black		Appelez-nous	-
14	216822900		Switch,light/lamp ,ramp			Immediately	$ 70.16
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
16	297139501		Socket,light/lamp ,25 W   (Replaces: 216817600)				$ 19.52
18	216853301		Handle		Appelez-nous	-
23	216205300		Light-signal		Appelez-nous	-
27	5303212828		Clip,panel Mtg				$ 16.63
34	5303296969		Shield,lid Lamp		Appelez-nous	-
35	216205400		Washer,signal Light		Appelez-nous	-
44	216823300		Switch-rocker				$ 47.15
47	216792700		Harness-lid/defrost		Appelez-nous	-
53	216713600		Buzzer,alarm		Appelez-nous	-
55	216140206		Handle,recessed ,black		Appelez-nous	-
56	216164002		Housing-switch		Appelez-nous	-
57	216873500		Overlay,decorative		Appelez-nous	-
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
NI	5303917276		Insulation				$ 330.91
