SELECT A DIAGRAM

01 - Cover


03 - Door

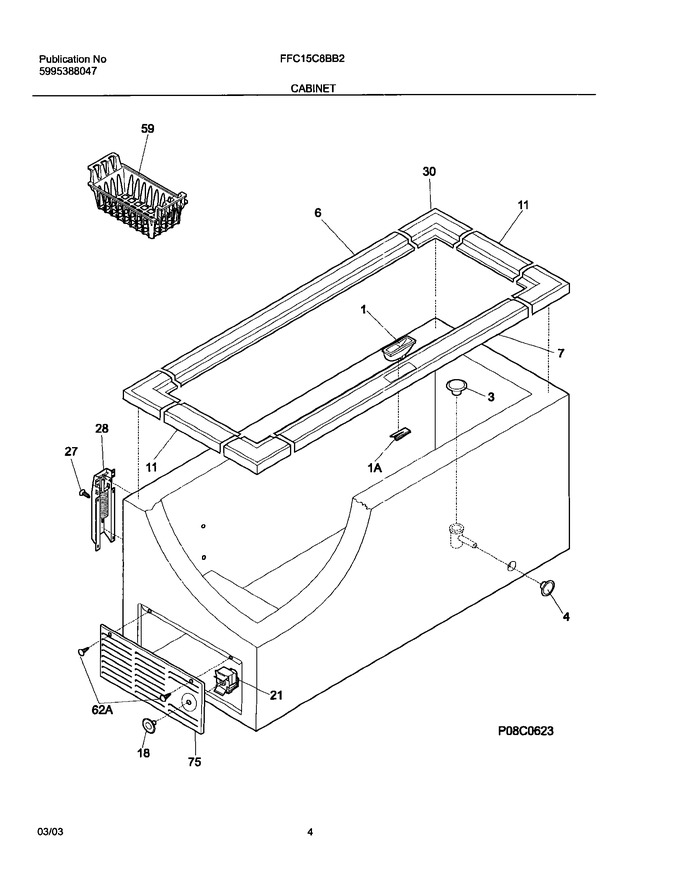

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216909801		Catch-lock,black		Appelez-nous	-
3	216502600		Plug-drain,interior			Immediately	$ 17.35
4	216073906		Plug-drain,exterior		Appelez-nous	-
6	216111005		Breaker,hinge Side		Appelez-nous	-
7	216111605		Breaker,lock Side		Appelez-nous	-
11	216110805		Breaker,black ,ends		Appelez-nous	-
18	216873600		Knob-control		Appelez-nous	-
27	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping   (Replaces: 216629600)				$ 13.01
28	216035202		Hinge		Appelez-nous	-
30	216110705		Breaker,black ,corners		Appelez-nous	-
59	216867300		Basket,upper ,(3)		Appelez-nous	-
75	216034303		Panel-access,black		Appelez-nous	-
1A	216818900		Support,lock Catch Clip				$ 12.65
62A	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
F21	216714701		Control,temperature		Appelez-nous	-
NI	216794206		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
