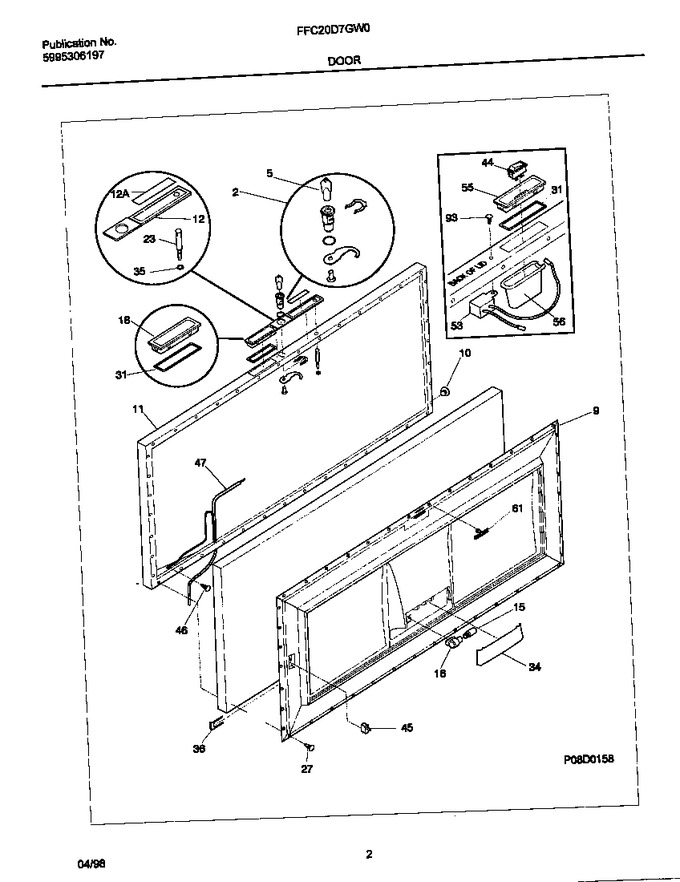

02 - Door
03 - Cabient
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303925107 | Lock Assy |
|
- | |||||
| 5 | 297147700 | Key, Lock (Replaces: 216388700) |
|
Immediately | $ 7.57 | ||||
| 9 | 216059700 | Panel-inner Door,white |
|
- | |||||
| 10 | 216141101 | Plug Button, White |
|
$ 2.57 | |||||
| 11 | 216130111 | Panel-outer Lid,white |
|
- | |||||
| 12 | 216208100 | Bezel, Nameplate |
|
- | |||||
| 15 | 5304517886 | Light Bulb (Replaces: 216222700) |
|
Immediately | $ 73.06 | ||||
| 16 | 216039700 | Socket-light |
|
- | |||||
| 18 | 216140200 | Handle |
|
- | |||||
| 23 | 3200895 | Light-signal |
|
- | |||||
| 27 | 5303212828 | Clip |
|
$ 16.63 | |||||
| 31 | 08009392 | Gasket |
|
- | |||||
| 34 | 216087902 | Shield-light |
|
- | |||||
| 35 | 5303297015 | Washer |
|
- | |||||
| 36 | 5306599968 | Plate |
|
- | |||||
| 44 | 5303017178 | Switch-rocker |
|
- | |||||
| 45 | 3201509 | Switch-defrost |
|
- | |||||
| 46 | 08037851 | Screw |
|
$ 3.57 | |||||
| 47 | 216605100 | Harness-lid/defrost |
|
- | |||||
| 53 | 5303208483 | Buzzer, Alarm |
|
- | |||||
| 55 | 216164000 | Housing, Switch |
|
- | |||||
| 56 | 5308037857 | Sealing Cap |
|
- | |||||
| 61 | 5309948955 | Clip-panel |
|
$ 11.53 | |||||
| 93 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| *10480 | 5303917276 | Insulation |
|
$ 330.91 | |||||
| 12A | 216208000 | Insert-bezel |
|
- |
