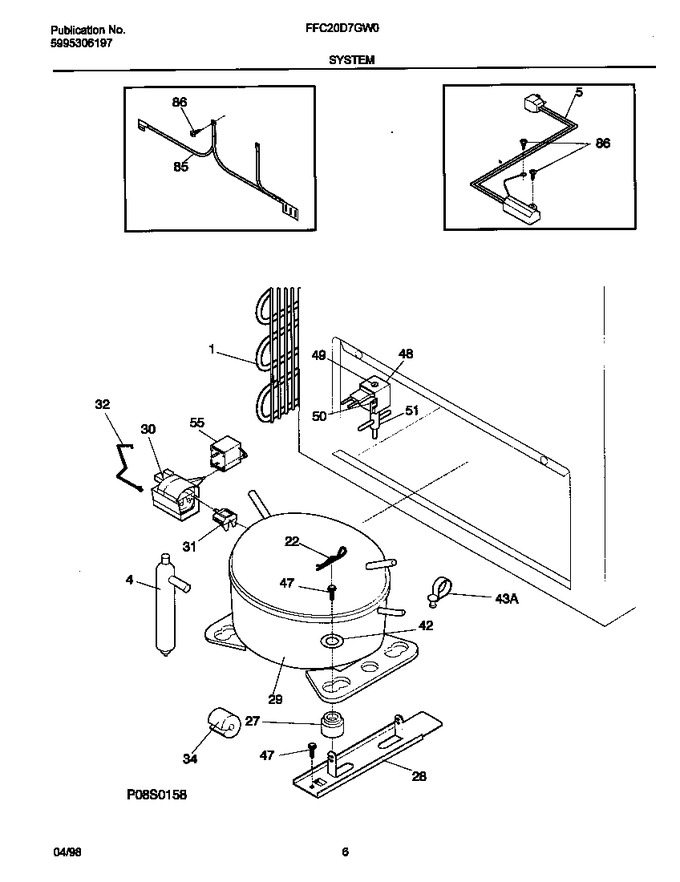

SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabient


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303280307		Condenser				$ 640.71
4	5303305677		Drier, Filter   (Replaces: 216099900)			Immediately	$ 31.67
5	216090100		Harness-wiring		Appelez-nous	-
22	216056400		Clip, Spring Mtg		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
28	5303212615		Support, Compressor		Appelez-nous	-
29	5304511983		Compressor   (Replaces: 5303925326)				$ 671.86
30	216008900		Starter-ptc		Appelez-nous	-
31	216100108		Overload Protector				$ 38.12
32	216158300		Clip-starter		Appelez-nous	-
34	5303298960		Spacer, Compressor		Appelez-nous	-
42	216232700		Washer-flat		Appelez-nous	-
47	08016776		Screw-compressor		Appelez-nous	-
48	3201514		Solenoid		Appelez-nous	-
49	3201513		Clip, Valve		Appelez-nous	-
50	216533700		Wire-ground		Appelez-nous	-
51	216161900		Valve, Formed		Appelez-nous	-
55	5304464438		Capacitor-run   (Replaces: 216236200)			Immediately	$ 35.38
85	216533500		Wire,ground		Appelez-nous	-
86	216036600		Screw		Appelez-nous	-
*10482	216478900		Fastener, Energy Guide		Appelez-nous	-
43A	5303212614		Clip Harness				$ 2.88

    View Diagram in Separate Window       Print Part List
