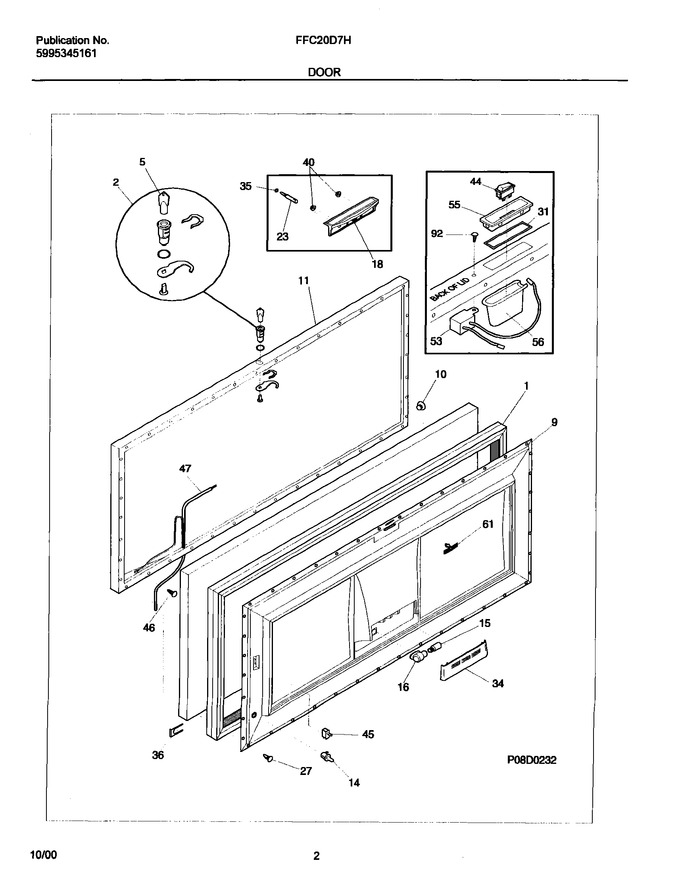

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08009392		Gasket, White		Appelez-nous	-
2	5300300791		Hook, Lock		Appelez-nous	-
2	5303925107		Lock Assy		Appelez-nous	-
9	216687500		Panel-inner Door,frzr		Appelez-nous	-
10	216141101		Plug Button, White				$ 2.57
11	216130104		Panel-outer Lid,white		Appelez-nous	-
14	297243800		Switch-light Plunger   (Replaces: 216472300)				$ 36.68
15	5304517886		Bulb-light,40w ,130v   (Replaces: 216608600)			Immediately	$ 73.06
16	216684000		Socket-light/lamp		Appelez-nous	-
18	216140200		Handle, Recessed, White		Appelez-nous	-
18	216205004		Handle,white		Appelez-nous	-
23	216212700		Light-signal,amber		Appelez-nous	-
27	5303212828		Clip,panel				$ 16.63
31	216481401		Gasket-door, White				$ 165.32
34	216160400		Shield-light		Appelez-nous	-
35	5303297015		Washer, Signal Light		Appelez-nous	-
36	5306599968		Plate, Backup, Light Switch		Appelez-nous	-
40	5309948647		Fastener, Handle		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
55	216164000		Housing, Switch		Appelez-nous	-
56	216694200		Sealing Cap		Appelez-nous	-
61	5309948955		Clip-panel				$ 11.53
92	5303272319		Screw,hex Washer Head ,8-32 X 7/16 ,buzzer		Appelez-nous	-
F44	5303017178		Switch-rocker		Appelez-nous	-
F45	3201509		Switch-defrost		Appelez-nous	-
F47	216756000		Harness-lid/defrost		Appelez-nous	-
F5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
F53	5303208483		Buzzer, Alarm		Appelez-nous	-
NI	5303925098		Insulation				$ 120.65

    View Diagram in Separate Window       Print Part List
