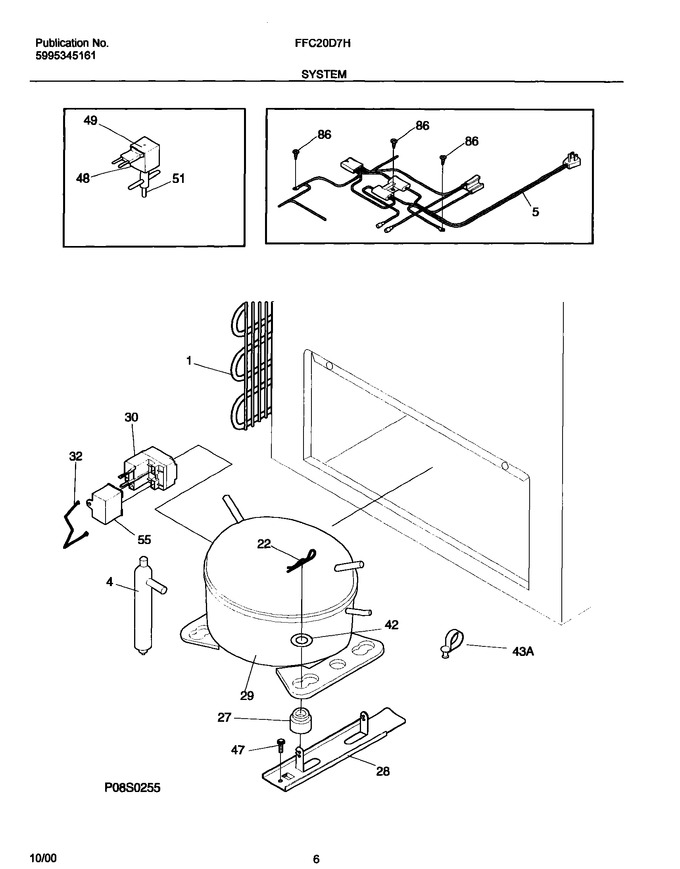

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 5303305677 | Drier-filter (Replaces: 216634500) |
|
Immediately | $ 31.67 | ||||
| 5 | 216702000 | Harness-main |
|
- | |||||
| 22 | 216056400 | Clip, Spring Mtg |
|
- | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 28 | 5303212615 | Support, Compressor |
|
- | |||||
| 30 | 216649302 | Controller |
|
$ 97.71 | |||||
| 32 | 216649100 | Clamp,elec Cont Mtg ,compressor |
|
$ 12.50 | |||||
| 42 | 216232700 | Washer-flat |
|
- | |||||
| 47 | 216337700 | Screw,hex Washer Head `10-24 X 0.500 |
|
- | |||||
| 49 | 216722800 | Nut,self-threading ,1/8 |
|
- | |||||
| 55 | 5304464438 | Capacitor-run,220 Vac ,15 Microfarad (Replaces: 218909901) |
|
Immediately | $ 35.38 | ||||
| 86 | 216036600 | Screw, Rwhd (gx, Ca), 8, 32 X 1/2 |
|
- | |||||
| 43A | 5303212614 | Clip Harness |
|
$ 2.88 | |||||
| F1 | 5303280307 | Condenser |
|
$ 640.71 | |||||
| F29 | 5304511983 | Compressor, R134a, With Overload (Replaces: 5303925326) |
|
$ 671.86 | |||||
| F29 | 216470500 | Compressor,service |
|
- | |||||
| F48 | 216700800 | Solenoid |
|
- | |||||
| F51 | 216718400 | Valve,formed |
|
- | |||||
| NI | 216478900 | Fastener, Energy Guide |
|
- | |||||
| NI | 5303298960 | Spacer-tube,.75`` |
|
- |
