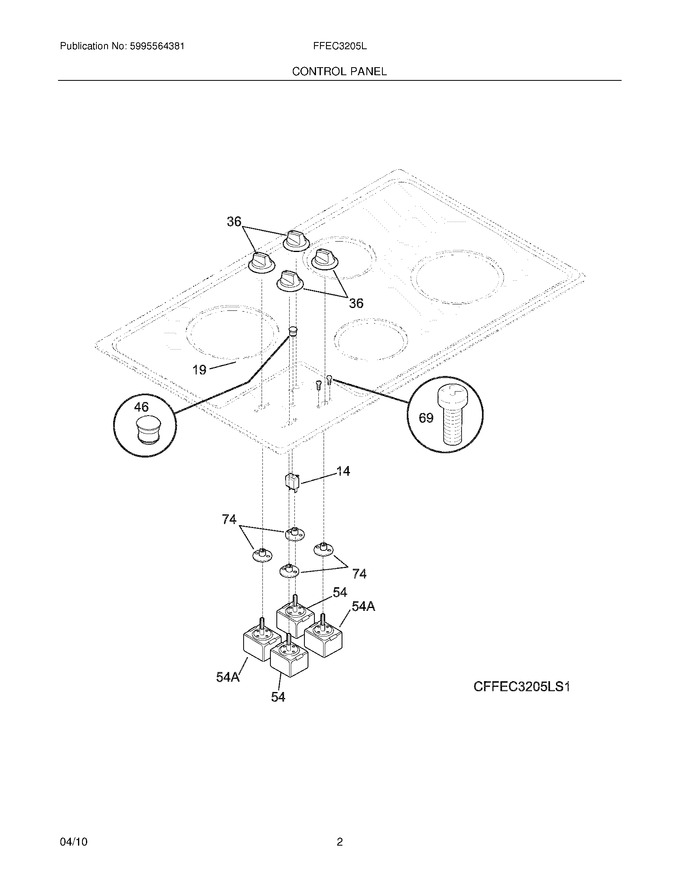

03 - Control Panel
05 - Maintop/surface Units
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 14 | 5303323991 | Lamp,indicator |
|
$ 26.25 | |||||
| 36 | 316544006 | Knob,control ,white |
|
$ 152.38 | |||||
| 46 | 5303200418 | Lens, Indicator Light |
|
- | |||||
| 69 | 5303323137 | Screw,8-32 X 1/4 (Replaces: 5303305528) |
|
$ 11.88 | |||||
| 74 | 318146010 | Bushing,switch |
|
$ 17.16 | |||||
| F54 | 318293818 | Switch,surface Unit ,small (Replaces: 318220014) |
|
Immediately | $ 90.30 | ||||
| F54A | 318293827 | Switch,surface Unit ,large (Replaces: 318220015) |
|
Immediately | $ 90.82 | ||||
| NI | 5303308449 | Fastener,wire Tie |
|
- | |||||
| NI | 5303323140 | Screw,ground ,10-32 X 0.375 |
|
- |
