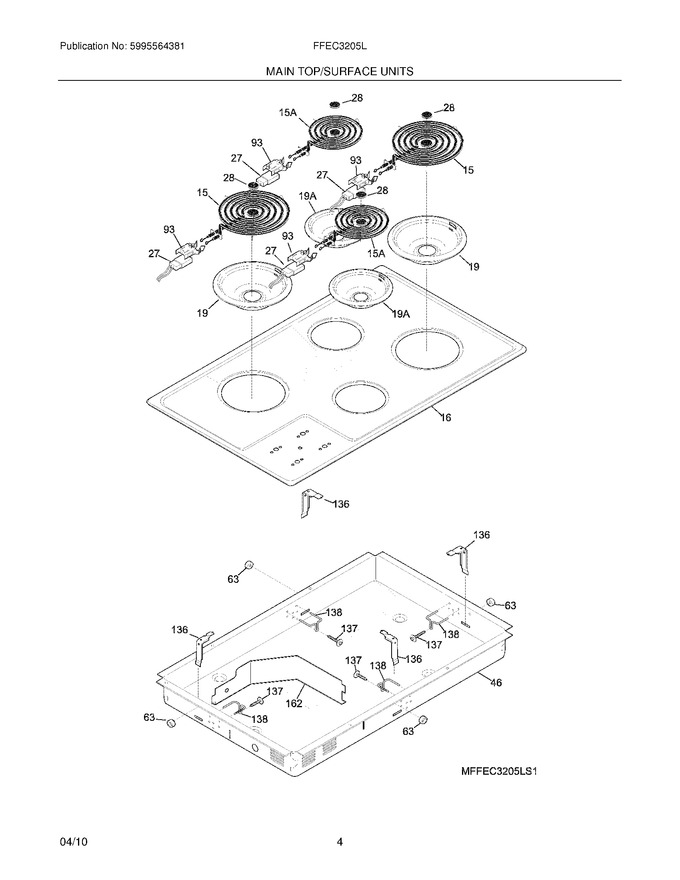

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	305452163		Maintop Assembly,white ,w/graphics		Appelez-nous	-
28	5303301461		Medallion, Surface Element		Appelez-nous	-
46	5304410269		Burner Box		Appelez-nous	-
63	318531702		Spacer,(6)   (Replaces: 318014110)				$ 9.93
93	318122500		Support,terminal Block ,(4)		Appelez-nous	-
136	3008711		Bracket,mounting		Appelez-nous	-
137	5303325981		Screw,10-16 X 1 1/2		Appelez-nous	-
138	08016269		Clip		Appelez-nous	-
162	3008713		Shield, Wire		Appelez-nous	-
F15	5308011964		Element,surface ,large/8 Inch ,(2) ,medallion Incl				$ 209.08
F15A	316439802		Element,surface ,small/6 Inch ,1250w ,medallion Incl   (Replaces: 5304437241)			Immediately	$ 192.78
F19	316048413		Pan,surface Element ,large ,chrome   (Replaces: 318067056)			Immediately	$ 9.85
F19A	316048414		Pan,surface Element ,small ,chrome   (Replaces: 318067046)			Immediately	$ 16.11
F27	318223408		Terminal Block,surface Element ,18`` ,orange Leads				$ 63.58
F27	318223405		Terminal Block,surface Element ,6`` ,yellow Leads		Appelez-nous	-
F27	318223406		Terminal Block,surface Element ,12`` ,white Leads		Appelez-nous	-
F27	318223425		Terminal Block,surface Element ,12`` ,brown Leads		Appelez-nous	-
FNI	318078525		Box & Wires Assy		Appelez-nous	-
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	5303300195		Screw,10-32 X 0.375 ,(2)		Appelez-nous	-
