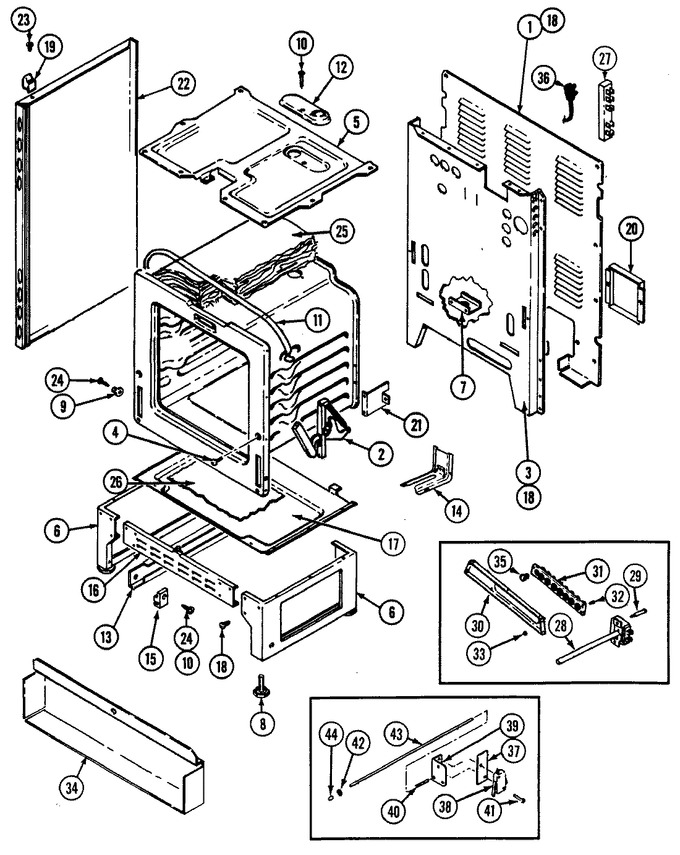

01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven
05 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4005F381-51 | Cover, Main Back Wire | 10 |
|
- | ||||
| 2 | 7106P048-60 | Hinge, Door | 10 |
|
- | ||||
| 3 | 4002F189-80 | Back, Main | 10 |
|
- | ||||
| 4 | WP4159193 | Screw (Replaces: 7101P115-60) | 10 |
|
$ 4.29 | ||||
| 5 | 4011F208-19 | Box, Burner | 10 |
|
- | ||||
| 6 | 4020W007-80 | Pedestal, Side | 10 |
|
- | ||||
| 7 | 3605F174-51 | Plate, Conduit Tubing | 10 |
|
- | ||||
| 8 | 7101P306-60 | Leg, Leveling | 10 |
|
- | ||||
| 9 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 10 |
|
$ 7.07 | ||||
| 10 | 7101P103-60 | Screw | 10 |
|
- | ||||
| 11 | 4820F001-59 | Strap, Retainer | 10 |
|
- | ||||
| 12 | 4005F432-45 | Cover, Vent | 10 |
|
- | ||||
| 13 | 3406F028-51 | Runner, Drawer | 10 |
|
- | ||||
| 14 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 10 |
|
Immediately | $ 4.69 | |||
| 14 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 10 |
|
$ 26.33 | ||||
| 15 | 8004P025-60 | Support, Drawer | 10 |
|
- | ||||
| 16 | 4020F001-80 | Pedestal, Front/rear | 10 |
|
- | ||||
| 17 | 3804F109-51 | Retainer, Bottom Insulation | 10 |
|
- | ||||
| 18 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 19 | 8010P088-60 | Spacer, Main Top (rt) | 10 |
|
- | ||||
| 19 | 8010P087-60 | Spacer, Main Top (lt) | 10 |
|
- | ||||
| 20 | 4005F427-51 | Cover, Access | 10 |
|
- | ||||
| 21 | 3807F400-51 | Support,oven Rear | 10 |
|
- | ||||
| 22 | 2618F085-74 | Panel, Side (alm) | 10 |
|
- | ||||
| 22 | 2618F099-74 | Panel, Side (alm) | 13 |
|
- | ||||
| 22 | 2618F099-71 | Panel, Side (wht) | 13 |
|
- | ||||
| 22 | 2618F085-71 | Panel, Side (wht) | 10 |
|
- | ||||
| 23 | WP74004005 | Screw (Replaces: 7118P013-60) | 10 |
|
$ 6.95 | ||||
| 24 | W11772394 | Screw (Replaces: 7101P334-60) | 10 |
|
Immediately | $ 10.94 | |||
| 25 | 4804F031-60 | Insulation, Oven Back | 10 |
|
- | ||||
| 25 | 4804F032-60 | Insulation, Oven Wrapper | 10 |
|
- | ||||
| 26 | 8312P058-60 | Foil, Insulation Retainer | 10 |
|
- | ||||
| 27 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) | 10 |
|
Immediately | $ 31.65 | |||
| 28 | 7404P057-60 | Thermostat, Redundant | 10 |
|
- | ||||
| 29 | 7118P020-60 | Screw Standoff | 10 |
|
- | ||||
| 30 | 3801F309-80 | Bracket, Fuse | 10 |
|
- | ||||
| 31 | 7401P031-60 | Block, Fuse | 10 |
|
- | ||||
| 32 | WP3400074 | Screw (Replaces: 7101P068-60) | 10 |
|
$ 6.47 | ||||
| 33 | M0282009 | Nut (Replaces: 7103P064-60) | 10 |
|
$ 12.06 | ||||
| 33 | WP179051 | Screw (Replaces: 7101P263-60) | 10 |
|
Immediately | $ 7.16 | |||
| 34 | 4005F417-51 | Cover, Fuse Block | 10 |
|
- | ||||
| 35 | 7416P006-60 | Fuse, 125v 15a | 10 |
|
- | ||||
| 35 | 7416P005-60 | Fuse, 125v 20a | 10 |
|
- | ||||
| 36 | 7402P036-60 | Cord, Power | 10 |
|
- | ||||
| 37 | 7003P047-60 | Insulator, Switch | 10 |
|
- | ||||
| 38 | 7403P281-60 | Switch, Micro | 10 |
|
- | ||||
| 39 | 3801F316-51 | Bracket, Light Switch | 10 |
|
- | ||||
| 40 | 7803P067-60 | Spring | 10 |
|
- | ||||
| 41 | 7101P330-60 | Screw, Switch | 10 |
|
- | ||||
| 42 | 7109P020-60 | Washer | 10 |
|
- | ||||
| 43 | 7809P017-60 | Rod, Light Switch | 10 |
|
- | ||||
| 44 | 8003P012-60 | Bumper | 10 |
|
- | ||||
| 44 | 5175D080-60 | Harness, Fuse | 10 |
|
- |
