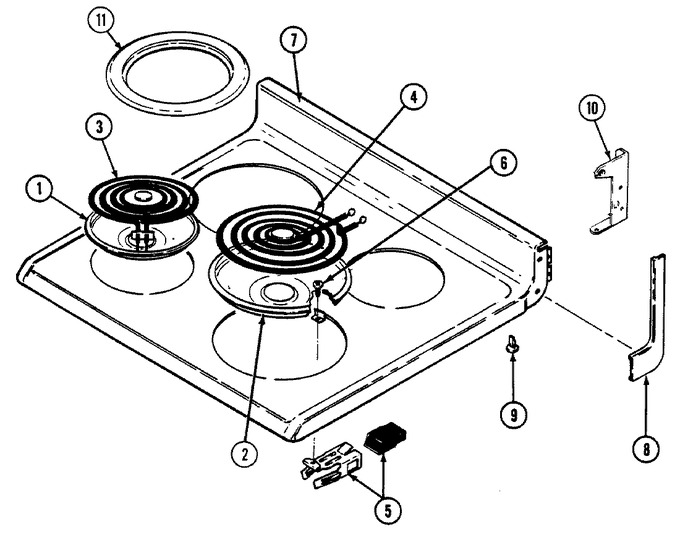

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7725P036-60 | Bowl, Drip (6``) (blk) | 10 |
|
- | ||||
| 2 | WP74001479 | Bowl, Drip (8``-blk) (Replaces: 7725P037-60) | 10 |
|
$ 17.35 | ||||
| 3 | WPW10259868 | Element (6``) (Replaces: 7406P081-60) | 11 |
|
Immediately | $ 112.28 | |||
| 3 | WPW10259868 | Element (6``) (Replaces: 7406P069-60) | 10 |
|
Immediately | $ 112.28 | |||
| 4 | WP12001560 | Element (8``) (Replaces: 7406P080-60) | 11 |
|
$ 172.17 | ||||
| 4 | WPW10259865 | Element (8``) (Replaces: 7406P070-60) | 10 |
|
Immediately | $ 105.92 | |||
| 5 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 10 |
|
Immediately | $ 28.45 | |||
| 7 | 2002W078-84 | Top, Main (alm) | 10 |
|
- | ||||
| 8 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 10 |
|
$ 7.68 | ||||
| 8 | 7746P035-60 | End Cap (lt-chr) | 10 |
|
- | ||||
| 8 | 8270P095-60 | Tape, Double Sided | 10 |
|
- | ||||
| 8 | 7746P034-60 | End Cap (rt-chr)----na | 10 |
|
- | ||||
| 9 | 8016P013-60 | Glide | 10 |
|
- | ||||
| 10 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 3807F423-51 | Support, Housing (rt) | 10 |
|
- | ||||
| 10 | 3807F424-51 | Support, Housing (lt) | 10 |
|
- | ||||
| 11 | 5175D071-60 | Harness, Coil Top | 10 |
|
- | ||||
| 11 | 7744P053-60 | Ring, Trim (6``) | 10 |
|
- | ||||
| 11 | 19950051A | Ring, Trim (8``) (Replaces: 7744P054-60) | 10 |
|
$ 14.92 |
