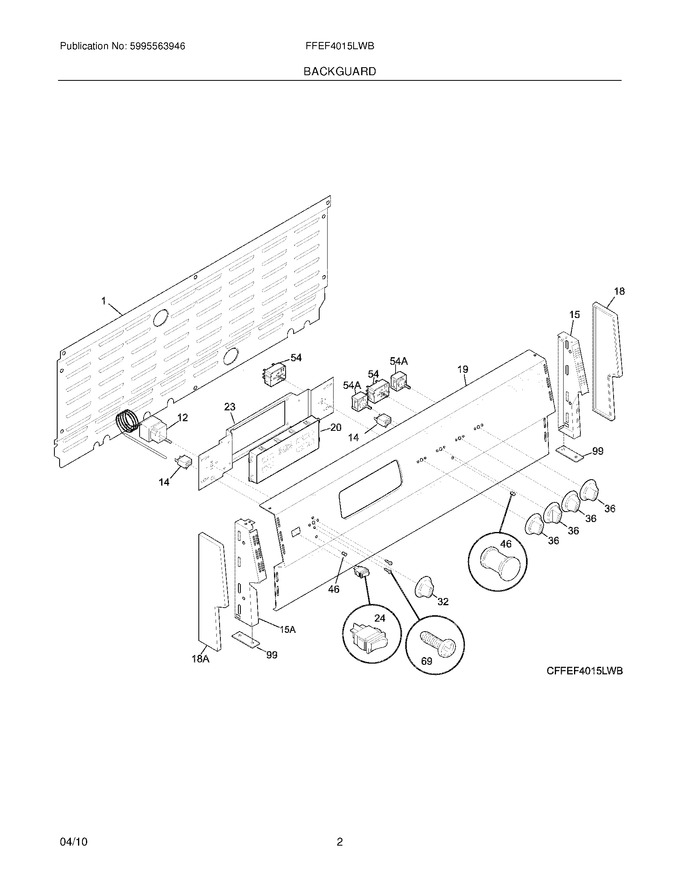

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318086913		Shield,backguard		Appelez-nous	-
15	318161902		Bracket,end Cap ,rh				$ 48.88
18	318190612		End Cap,white ,rh		Appelez-nous	-
19	318194106		Panel,control ,white		Appelez-nous	-
23	318015045		Bracket,clock/timer Mtg				$ 38.12
32	316544011		Knob,oven Selector ,white		Appelez-nous	-
36	316544009		Knob,control ,white		Appelez-nous	-
46	318044512		Lens,indicator Light		Appelez-nous	-
69	5303288565		Screw,8-32 X 3/16 ,(8)   (Replaces: 5303323134)				$ 3.12
99	5303304544		Spacer,end Cap Mtg.		Appelez-nous	-
15A	318161903		Bracket,end Cap ,lh		Appelez-nous	-
18A	318190613		End Cap,white ,lh		Appelez-nous	-
F12	318183001		Thermostat,oven		Appelez-nous	-
F14	318369501		Lamp,indicator			Immediately	$ 67.62
F20	318185503		Controller,electronic ,es300 ,white ,w/overlay		Appelez-nous	-
F24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
F54	318293820		Switch,surface Element ,small				$ 83.62
F54A	318120501		Switch,surface Unit ,small & Large				$ 244.13
FNI	318532145		Harness,wiring ,ground Terminal		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303288566		Screw,8 X 1/4 ,(4)   (Replaces: 5303323130)				$ 2.12
NI	316419137		Overlay,clock ,white ,es300			Immediately	$ 31.34
NI	5303325982		Nut,keps ,10-32		Appelez-nous	-
NI	08002868		Screw,10-24 X 0.500 ,probe,thrm Brkt ,shield,drwr,box				$ 14.18
NI	3201899		Washer,flat		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
