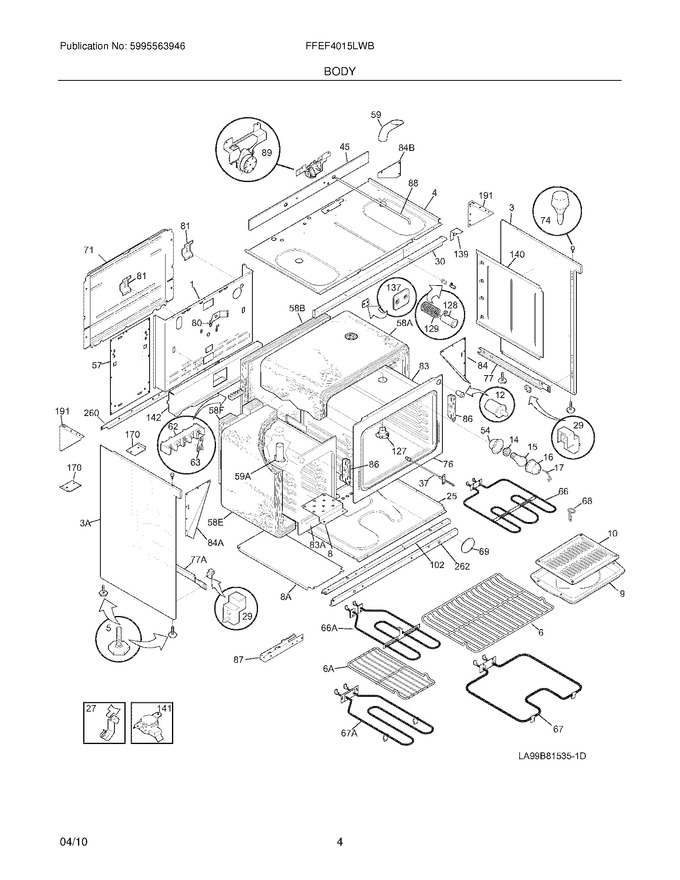

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318066415 | Panel,main Back |
|
- | |||||
| 3 | 318066132 | Panel,bodyside ,white ,rh |
|
- | |||||
| 4 | 318073712 | Panel,subtop |
|
- | |||||
| 5 | 318175510 | Screw-leveling (Replaces: 318175503) |
|
Immediately | $ 24.26 | ||||
| 6 | 318025314 | Rack,oven |
|
Immediately | $ 148.70 | ||||
| 8 | 318133000 | Panel,heat Shield ,small Oven |
|
- | |||||
| 9 | 316081900 | Pan,broileroptional Access0ry |
|
$ 65.89 | |||||
| 10 | 316082000 | Insert,broiler Panoptional Access0ry |
|
$ 68.85 | |||||
| 14 | 316116400 | Receptacle,oven Light (Replaces: 318224000) |
|
Immediately | $ 56.10 | ||||
| 15 | 40A15 | Bulb/lamp,light (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 16 | 5304524341 | Lens,oven Light ,glass (Replaces: 318406100) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer,light Cover |
|
- | |||||
| 25 | 318179113 | Shield,bottom |
|
$ 76.65 | |||||
| 27 | 5303284616 | Clip,thermo Bulb Mtg |
|
$ 9.86 | |||||
| 29 | 318161600 | Guide,oven Drawer ,nylon ,front |
|
- | |||||
| 30 | 318023921 | Bracket,main Top |
|
- | |||||
| 45 | 318057401 | Panel,wiring Shield |
|
- | |||||
| 54 | 318222400 | Housing,oven Light |
|
$ 58.22 | |||||
| 57 | 318055701 | Panel,small Oven Back |
|
- | |||||
| 59 | 318549806 | Tube,oven Vent |
|
- | |||||
| 62 | 5303935061 | Terminal Block Kit |
|
- | |||||
| 63 | 318264200 | Plate,grounding Strap |
|
$ 23.51 | |||||
| 68 | 5304403015 | Support,hanger ,broil Element |
|
$ 35.04 | |||||
| 69 | 318036401 | Plate,oven Light ,small Oven |
|
- | |||||
| 71 | 5303310515 | Panel,wiring Cover ,rear |
|
$ 368.97 | |||||
| 74 | 318147420 | Bumper,base |
|
- | |||||
| 76 | 318056010 | Frame,oven ,front |
|
- | |||||
| 77 | 318018000 | Rail,drawer Glide ,rh |
|
- | |||||
| 80 | 5303324473 | Bracket,oven Mounting |
|
- | |||||
| 81 | 318192400 | Spring,oven |
|
$ 312.53 | |||||
| 83 | 318089613 | Liner,oven |
|
$ 205.64 | |||||
| 84 | 5303326184 | Gusset,rh Rear |
|
- | |||||
| 86 | 318561100 | Receptacle,hinge ,(2) |
|
$ 21.23 | |||||
| 87 | 318111800 | Plate,cord Set Mtg |
|
- | |||||
| 88 | 5303311160 | Rod-latch |
|
- | |||||
| 102 | 318111901 | Channel,oven Support ,black |
|
- | |||||
| 127 | 318317100 | Adapter Assembly,vent Tube ,w/converter |
|
$ 75.13 | |||||
| 128 | 318563000 | Bushing,latch Rod |
|
$ 25.88 | |||||
| 129 | 5303311164 | Spring |
|
$ 18.95 | |||||
| 137 | 318090310 | Latch,door |
|
Immediately | $ 44.61 | ||||
| 139 | 318042900 | Bracket,filler |
|
- | |||||
| 140 | 318071300 | Plate,insul Retainer |
|
- | |||||
| 142 | 318123901 | Deflector |
|
- | |||||
| 170 | 5304405241 | Anti-tip Bracket |
|
$ 59.17 | |||||
| 191 | 318322800 | Angle,rear Plenum ,(2) |
|
- | |||||
| 260 | 318055500 | Bracket,gusset Support |
|
- | |||||
| 262 | 08011954 | Channel,oven Support ,front |
|
$ 47.60 | |||||
| 3A | 318066133 | Panel,bodyside ,white ,lh |
|
- | |||||
| 58A | 318285017 | Insulation,oven Wrapper |
|
- | |||||
| 58B | 318285018 | Insulation,oven Back |
|
$ 8.30 | |||||
| 58E | 318285005 | Insulation,wrapper ,small Oven |
|
- | |||||
| 58F | 318285006 | Insulation,back ,small Oven |
|
- | |||||
| 59A | 318549807 | Tube,small Oven Vent |
|
- | |||||
| 6A | 318345206 | Rack,small Oven |
|
$ 70.88 | |||||
| 77A | 318018001 | Rail,drawer Glide ,lh |
|
- | |||||
| 83A | 318089200 | Liner,small Oven |
|
- | |||||
| 84A | 5303326185 | Gusset,lh Rear |
|
- | |||||
| 84B | 318055902 | Gusset,rear |
|
- | |||||
| 8A | 318071900 | Panel,small Oven ,bottom |
|
- | |||||
| F12 | 318394803 | Switch,light ,door (Replaces: 318394801) |
|
Immediately | $ 44.23 | ||||
| F141 | 318003600 | Thermostat-safety |
|
$ 293.37 | |||||
| F37 | 316217002 | Probe,oven Temp |
|
Immediately | $ 61.23 | ||||
| F66 | 318255605 | Element,broil ,2750w (Replaces: 318255600) |
|
Immediately | $ 192.78 | ||||
| F66A | 318255700 | Element,broil ,small Oven |
|
$ 179.92 | |||||
| F67 | 318255006 | Element,bake ,3000w (Replaces: 318255002) |
|
Immediately | $ 185.14 | ||||
| F67A | 318255201 | Element,bake ,small Oven (Replaces: 318255200) |
|
$ 99.23 | |||||
| F89 | 318095959 | Motor,latch Assy ,w/brkt & Switch |
|
$ 135.75 | |||||
| FNI | 318532145 | Harness,wiring ,ground Terminal |
|
- | |||||
| FNI | 318532146 | Harness,wiring ,ground Terminal |
|
- | |||||
| FNI | 318232420 | Harness,wiring ,door Switch |
|
- | |||||
| FNI | 318199620 | Harness,wiring ,main |
|
- | |||||
| FNI | 318232341 | Wiring Harness,small Oven |
|
- | |||||
| NI | 316205500 | Nut-10-32 (Replaces: 5303323144) |
|
$ 11.34 | |||||
| NI | 5303311528 | Screw,oval Hd Sq Dr ,6-20ab X 0.625 ,black |
|
- | |||||
| NI | 5304461333 | Screw,10-32 X 17/32 |
|
Immediately | $ 13.46 | ||||
| NI | 5303323136 | Screw-ground |
|
- | |||||
| NI | 3204817 | Plug, Button |
|
- | |||||
| NI | 318086002 | Washer,flat ,steel |
|
- | |||||
| NI | 5303323133 | Screw,8-18 X 0.500 |
|
- | |||||
| NI | 5304415832 | Screw,8-18 X 0.406 |
|
- | |||||
| NI | 318235301 | Connector Assy.,w/3 Lugs ,& Instructions (Replaces: 318235300) |
|
$ 29.06 | |||||
| NI | 08002868 | Screw,10-24 X 0.500 ,probe,thrm Brkt ,shield,drwr,box |
|
$ 14.18 | |||||
| NI | 5303323277 | Screw (8-18x13/32) |
|
$ 8.66 | |||||
| NI | 5303323139 | Screw,10-24 X 0.906 |
|
$ 13.46 | |||||
| NI | 134178901 | Screw,8-18 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 |
