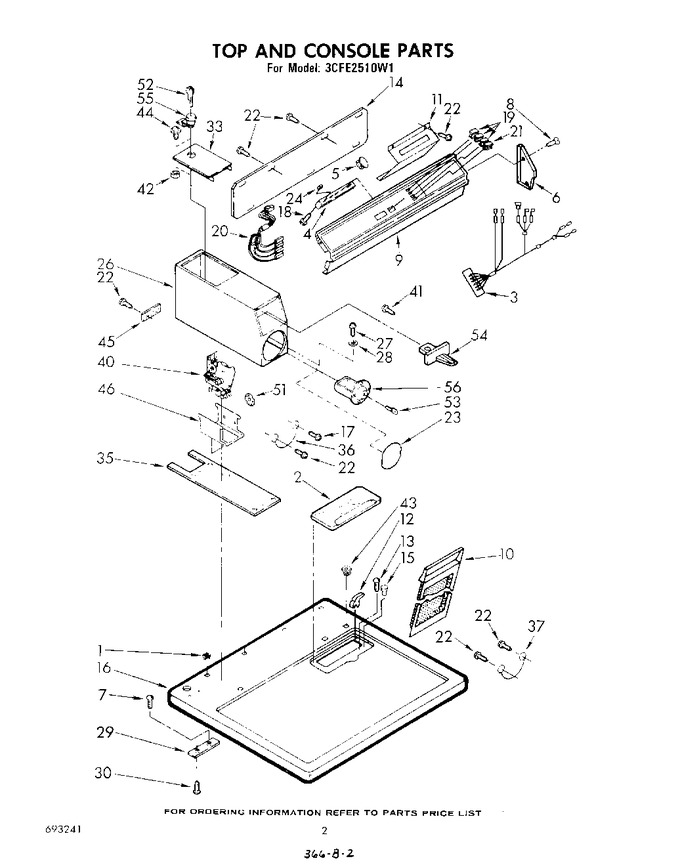

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 98219 | Nut, Push-in (4) |
|
- | |||||
| 2 | 691197 | Cover, Lint Screen (chrome) |
|
- | |||||
| 3 | 690055 | Harness, Lower Wiring |
|
- | |||||
| 3 | 688903 | Harness, Upper Wiring |
|
- | |||||
| 4 | 688670 | Switch, Pushbutton |
|
- | |||||
| 5 | 54690 | Plug, Button |
|
- | |||||
| 6 | 346830 | Cap, End |
|
- | |||||
| 7 | 90057 | Screw (3) |
|
- | |||||
| 8 | WP488627 | Screw, 8a X 1/2 (Replaces: 338156) |
|
$ 6.81 | |||||
| 9 | 688665 | Billboard, Console |
|
- | |||||
| 10 | 339392V | Screen, Lint (Replaces: 690634) |
|
Immediately | $ 37.72 | ||||
| 11 | 358628 | Bracket, Control |
|
- | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 691193) |
|
$ 6.95 | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 691194) |
|
$ 6.95 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 12.65 | ||||
| 14 | 356441 | Panel, Rear |
|
- | |||||
| 15 | 297535 | Bumper, Lint Lid |
|
- | |||||
| 16 | 345149 | Top (white) |
|
- | |||||
| 17 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 18 | WP965173 | Screw, 8 X 3/8 (Replaces: 345304) |
|
Immediately | $ 9.65 | ||||
| 19 | 301006 | Lens, Amber (3) |
|
- | |||||
| 20 | 358750 | Lights, Indicator (250 Volt) |
|
- | |||||
| 21 | 358741 | Lens, Yellow |
|
- | |||||
| 22 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 23 | 376429 | Plate Assembly (vault Cover) |
|
- | |||||
| 24 | 358591 | Button (4) |
|
- | |||||
| 26 | 688919 | Case, Meter (white) |
|
- | |||||
| 27 | 691983 | Bolt, 5/16-24 X 3/4 (4) |
|
- | |||||
| 28 | 138485 | Washer, 5/16 |
|
- | |||||
| 29 | DD81-03277A | Plate & Nut Assembly (Replaces: 83701) |
|
$ 1.66 | |||||
| 30 | W10841059 | Screw, 10-16 X 3/4 (Replaces: 98445) |
|
- | |||||
| 33 | W11283272 | Door, Service (white) (Replaces: 372510) |
|
$ 95.29 | |||||
| 35 | WP3954812 | Cushion, Console (Replaces: 357128) |
|
$ 27.99 | |||||
| 36 | 690078 | Wire, Ground |
|
- | |||||
| 37 | 340025 | Wire, Ground |
|
- | |||||
| 40 | 688621 | Timer, 50 Hz. |
|
- | |||||
| 41 | WP8576635 | Bolt, Slide Mechanism (Replaces: 352479) |
|
Immediately | $ 67.13 | ||||
| 42 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 7.33 | |||||
| 43 | 352292 | Nut, Push-in |
|
$ 11.43 | |||||
| 44 | 358409 | Screw & Washer |
|
- | |||||
| 45 | 357856 | Strap, Support |
|
- | |||||
| 46 | 686760 | Bracket, Timer |
|
- | |||||
| 51 | 51-161-6 | Cam (6 Pin) (Replaces: 343777) |
|
$ 31.07 | |||||
| 51 | WP339854 | Cam (9 Pin) (Replaces: 339854) |
|
$ 5.83 | |||||
| 51 | WP339855 | Cam (4 Pin) (Replaces: 339855) |
|
$ 7.53 | |||||
| 52 | 8-20 | Key (service Door) |
|
$ 51.32 | |||||
| 54 | 12-1030 | Slide Mechanism (when Ordering Specify Number Of Coins & Denomination) (triple Coin Chute) |
|
- | |||||
| 54 | 11-1111 | Slide Mechanism (when Ordering Specify Number Of Coins & Denomination) (tokett 1 Chute) |
|
$ 260.24 | |||||
| 54 | 11-1115 | Slide Mechanism (when Ordering Specify Number Of Coins & Denomination) (tokett 2 Chute) |
|
Immediately | $ 14,204.42 | ||||
| 54 | 11\-\1010-1 | Slide Mechanism (when Ordering Specify Number Of Coins & Denomination) (blank Coin Chute) |
|
- | |||||
| 54 | 12-1212 | Slide Mechanism (when Ordering Specify Number Of Coins & Denomination) (stack Chute) |
|
- | |||||
| 54 | 11-1010 | Slide Mechanism (when Ordering Specify Number Of Coins & Denomination) (single Coin Chute) |
|
- | |||||
| 54 | 12-1010 | Slide Mechanism (when Ordering Specify Number Of Coins & Denomination) (double Coin Chute) |
|
- | |||||
| 55 | 20198 | Security Lock & Cam Assembly |
|
- | |||||
| 55 | 68-1124 | Security Lock & Cam Assembly |
|
- | |||||
| 56 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | ||||
| 56 | 8-1400-1 | Money Box W/lock (greenwald) |
|
- | |||||
| 56 | 8-1400-2 | Money Box W/lock (abloy) |
|
- | |||||
| 56 | 8-1400-3 | Money Box W/lock (illinois Duo) |
|
- | |||||
| 56 | 8-1400-4 | Money Box W/lock (medeco) |
|
- | |||||
| 56 | 8-1400-5 | Money Box W/lock (cap-lok) |
|
- | |||||
| 56 | 8-1400-6 | Money Box W/lock (rampart) |
|
- | |||||
| 56 | 37557 | Money Box W/lock (when Ordering Money Box Specify Series ``200`` And Vendor Of Lock) (abloy) |
|
- | |||||
| 56 | 37803 | Money Box W/lock (when Ordering Money Box Specify Series ``200`` And Vendor Of Lock) (illinois Duo) |
|
- | |||||
| 56 | 37560 | Money Box W/lock (when Ordering Money Box Specify Series ``200`` And Vendor Of Lock) (medeco) |
|
- | |||||
| 56 | 37559 | Money Box W/lock (when Ordering Money Box Specify Series ``200`` And Vendor Of Lock) (gem) |
|
- | |||||
| 56 | 37737 | Money Box W/lock (when Ordering Money Box Specify Series ``200`` And Vendor Of Lock) (ucm) |
|
- | |||||
| 56 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 56 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | |||||
| 56 | 350941 | Leveler (thinner) |
|
- | |||||
| 348772 | Mult Venting, Instruction |
|
- | ||||||
| 347146 | Kit, Exhaust Deflector |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 693241 | List, Parts |
|
- | ||||||
| 687452 | Instructions, Installation (50 Hz.) |
|
- | ||||||
| 799351 | Thinner (1 Gal.) |
|
- |
