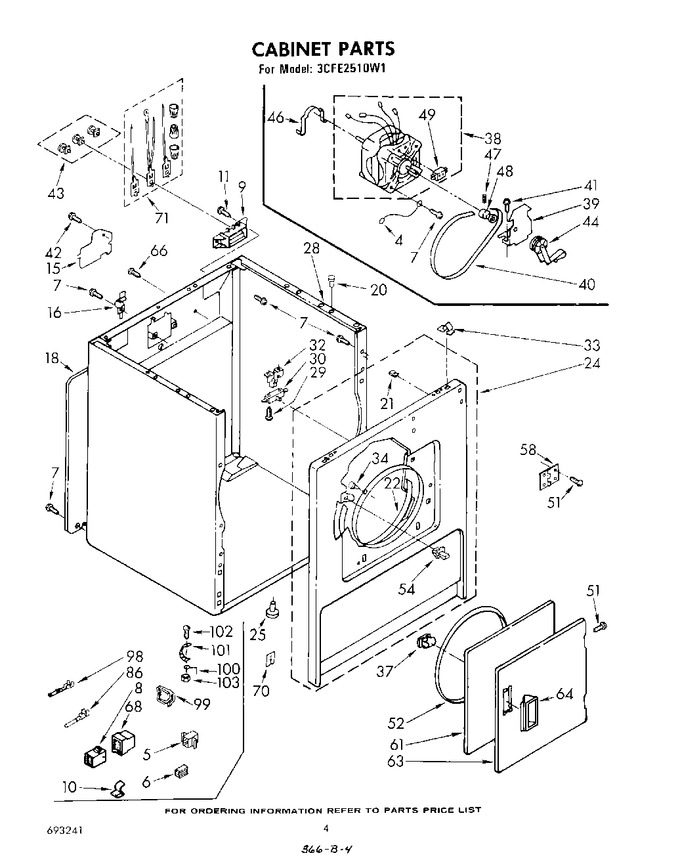

01 - Section
02 - Section
03 - Section
04 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 690236 | Wire, Ground (motor) |
|
- | |||||
| 5 | 352458 | Plug, 6-way (use W/terminal 94614) |
|
- | |||||
| 6 | 352457 | Cap, 6-way (use W/terminal 94613) |
|
- | |||||
| 7 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 8 | 94611 | Plug, 9-way Terminal (accepts Terminal 94614) |
|
- | |||||
| 9 | 279320 | Terminal Block (Replaces: 690261) |
|
Immediately | $ 61.43 | ||||
| 10 | WP98997 | Clip, Harness (Replaces: 98997) |
|
$ 9.98 | |||||
| 11 | WP308685 | Screw (Replaces: 98518) |
|
Immediately | $ 7.08 | ||||
| 15 | 343630 | Cover, Block |
|
- | |||||
| 16 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 7.04 | |||||
| 18 | 346368 | Panel, Rear |
|
- | |||||
| 20 | 98669 | Locator, Top (2) |
|
$ 12.03 | |||||
| 21 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 10.25 | ||||
| 22 | 279264 | Seal & Bearing Assembly (Replaces: 349462) |
|
Immediately | $ 67.07 | ||||
| 24 | 693197 | Front Panel Assembly (white) |
|
- | |||||
| 25 | 49621 | Foot (Replaces: 688222) |
|
Immediately | $ 7.70 | ||||
| 28 | 690847 | Cabinet (white) |
|
- | |||||
| 29 | WP98129 | Screw, 6-32 (2) (Replaces: 98129) |
|
$ 6.80 | |||||
| 30 | W10820036 | Switch, Door (Replaces: 347207) |
|
Immediately | $ 27.45 | ||||
| 32 | WP691581 | Clip (Replaces: 295998) |
|
Immediately | $ 7.28 | ||||
| 33 | WP18776 | Lock, Front Top (2) (Replaces: 18776) |
|
Immediately | $ 11.41 | ||||
| 34 | 279220 | Clip, Felt Pad (2) (Replaces: 685203) |
|
$ 18.59 | |||||
| 37 | 279570 | Catch, Door Assembly (Replaces: 690081) |
|
Immediately | $ 8.00 | ||||
| 38 | W11618508 | Motor Assembly 50 Hz. (Replaces: 685815) |
|
$ 313.30 | |||||
| 39 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 109.41 | ||||
| 40 | 341241 | Belt, Drive (Replaces: 349533) |
|
Immediately | $ 16.34 | ||||
| 41 | 3400500 | Bolt, 5/16-18 X 3/4 (Replaces: 172455) |
|
Immediately | $ 12.03 | ||||
| 42 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 687128) |
|
Immediately | $ 7.07 | ||||
| 43 | 279393 | Terminal Block Kit (for Terminal Block) |
|
Immediately | $ 42.63 | ||||
| 44 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 20.22 | ||||
| 46 | WP660658 | Clamp, Motor (2) (alt.) (Replaces: 685441) |
|
$ 7.05 | |||||
| 46 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 7.05 | |||||
| 46 | WP660658 | Clamp, Motor (2) (alt.) (Replaces: 343481) |
|
$ 7.05 | |||||
| 47 | 690046 | Set Screw |
|
- | |||||
| 48 | W11618508 | Pulley, 50 Hz. (includes Illus. 47) (Replaces: 685064) |
|
$ 313.30 | |||||
| 49 | 279827 | Switch, Motor Start (Replaces: 337351) |
|
Immediately | $ 172.76 | ||||
| 51 | WP694091 | Screw (Replaces: 694091) |
|
$ 6.47 | |||||
| 52 | W11613302 | Seal, Door (Replaces: 685763) |
|
$ 48.27 | |||||
| 54 | 5366021400 | Strike, Door (Replaces: 236876) |
|
Immediately | $ 55.99 | ||||
| 58 | WP348023 | Hinge & Pin Assembly (2) (Replaces: 348023) |
|
$ 7.58 | |||||
| 61 | 280077 | Door, Rear (white) (Replaces: 348201) |
|
$ 177.82 | |||||
| 63 | WP348205 | Door, Front (white) (Replaces: 348205) |
|
Immediately | $ 132.65 | ||||
| 64 | WP686711 | Handle, Door (white) (Replaces: 686715) |
|
Immediately | $ 7.16 | ||||
| 66 | WP681414 | Screw, 10-32 X 1/2 (external Ground) (Replaces: 690989) |
|
Immediately | $ 7.07 | ||||
| 68 | 94612 | Cap, 9-way Terminal (accepts Terminal 94613) |
|
- | |||||
| 70 | W10854425 | Clip, Front Panel (2) (Replaces: 237823) |
|
Immediately | $ 14.00 | ||||
| 71 | 279318 | Terminal, Tinned & Brass (3) (includes Illus. 43) |
|
Immediately | $ 90.89 | ||||
| 86 | 94613 | Terminal, Male (use W/94612 & 352457) |
|
- | |||||
| 98 | WP94614 | Terminal, Female (use W/94611 & 352458) (Replaces: 94614) |
|
$ 6.90 | |||||
| 99 | 688412 | Clip, Retainer |
|
- | |||||
| 100 | 685449 | Wire, Ground |
|
- | |||||
| 101 | 22965 | Strap, Ground |
|
- | |||||
| 102 | 132848 | Screw, 10-24 X 1 |
|
- | |||||
| 103 | W10080180 | Nut, 10-24 (Replaces: 120361) |
|
$ 12.13 |
