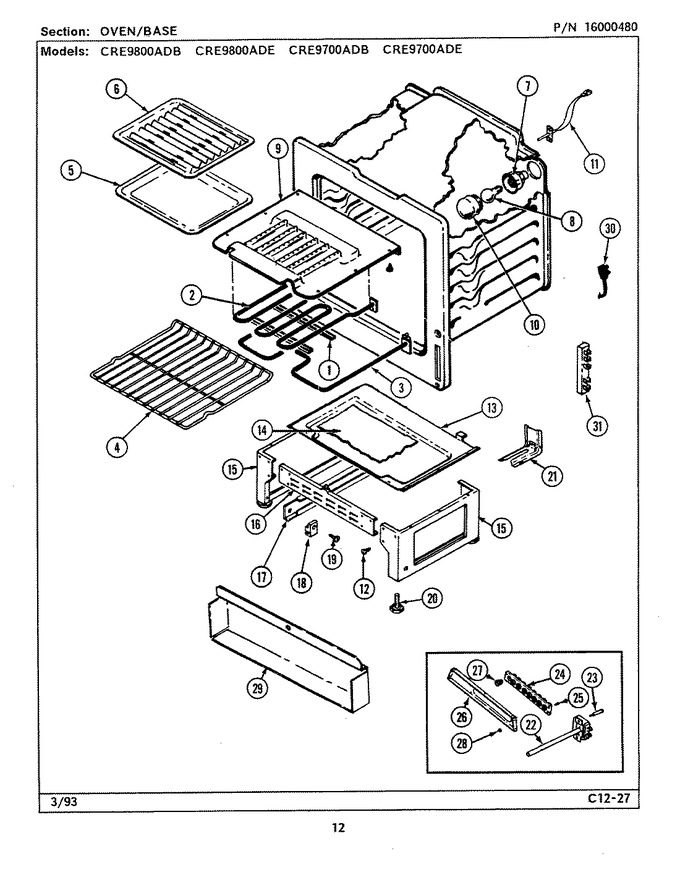

04 - Oven/base
05 - Top Assembly (cre9700adx)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3807F387-45 | Support, Broil Element | 10 |
|
- | ||||
| 2 | WPY04000059 | Element, Broil (Replaces: Y04000059) | 10 |
|
$ 159.00 | ||||
| 3 | WP74003019 | Element, Bake (Replaces: Y04000058) | 10 |
|
Immediately | $ 51.10 | |||
| 4 | WPW10282492 | Rack----na (Replaces: 7801P039-60) | 10 |
|
Immediately | $ 65.15 | |||
| 5 | Y3401F02019 | Pan, Broil | 10 |
|
- | ||||
| 6 | Y3413F01619 | Insert, Broil Pan | 10 |
|
- | ||||
| 7 | WP7407P182-60 | Receptacle, Bulb (Replaces: 7407P088-60) | 10 |
|
Immediately | $ 66.10 | |||
| 8 | 40A15 | Bulb, Oven (Replaces: 7407P095-60) | 10 |
|
Immediately | $ 1.98 | |||
| 9 | 3601F202-45 | Baffle. Broil | 10 |
|
- | ||||
| 10 | WP9781049 | Cover, Bulb (Replaces: 7724P047-60) | 10 |
|
Immediately | $ 71.93 | |||
| 11 | 12001656 | Sensor, Oven (Replaces: 7430P010-60) | 10 |
|
Immediately | $ 39.55 | |||
| 12 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 13 | 3804F109-51 | Retainer, Bottom Insulation | 10 |
|
- | ||||
| 14 | 8312P058-60 | Foil, Insulation Retainer | 10 |
|
- | ||||
| 15 | 4020W007-80 | Pedestal, Side | 10 |
|
- | ||||
| 16 | 4020F001-80 | Pedestal, Front/rear | 10 |
|
- | ||||
| 17 | 3406F028-51 | Runner, Drawer | 10 |
|
- | ||||
| 18 | 8004P025-60 | Support, Drawer | 10 |
|
- | ||||
| 19 | W11772394 | Screw (Replaces: 7101P334-60) | 10 |
|
Immediately | $ 10.94 | |||
| 20 | 7101P306-60 | Leg, Leveling | 10 |
|
- | ||||
| 21 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 10 |
|
Immediately | $ 4.69 | |||
| 21 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 10 |
|
$ 26.33 | ||||
| 22 | 7404P057-60 | Thermostat, Redundant | 10 |
|
- | ||||
| 23 | 7118P020-60 | Screw Standoff | 10 |
|
- | ||||
| 24 | 7401P031-60 | Block, Fuse | 10 |
|
- | ||||
| 25 | WP3400074 | Screw (Replaces: 7101P068-60) | 10 |
|
$ 6.47 | ||||
| 26 | 3801F309-80 | Bracket, Fuse | 10 |
|
- | ||||
| 27 | 7416P004-60 | Fuse, 125v 30a | 10 |
|
- | ||||
| 27 | 7416P005-60 | Fuse, 125v 20a | 10 |
|
- | ||||
| 27 | 7416P006-60 | Fuse, 125v 15a | 10 |
|
- | ||||
| 28 | M0282009 | Nut (Replaces: 7103P064-60) | 10 |
|
$ 12.06 | ||||
| 29 | 4005F417-51 | Cover, Fuse Block | 10 |
|
- | ||||
| 30 | 7402P050-60 | Cord, Power | 10 |
|
- | ||||
| 31 | 7401P041-60 | Board, Terminal | 10 |
|
- | ||||
| 31 | 5175D072-60 | Harness, Fuse | 10 |
|
- |
