01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven/base

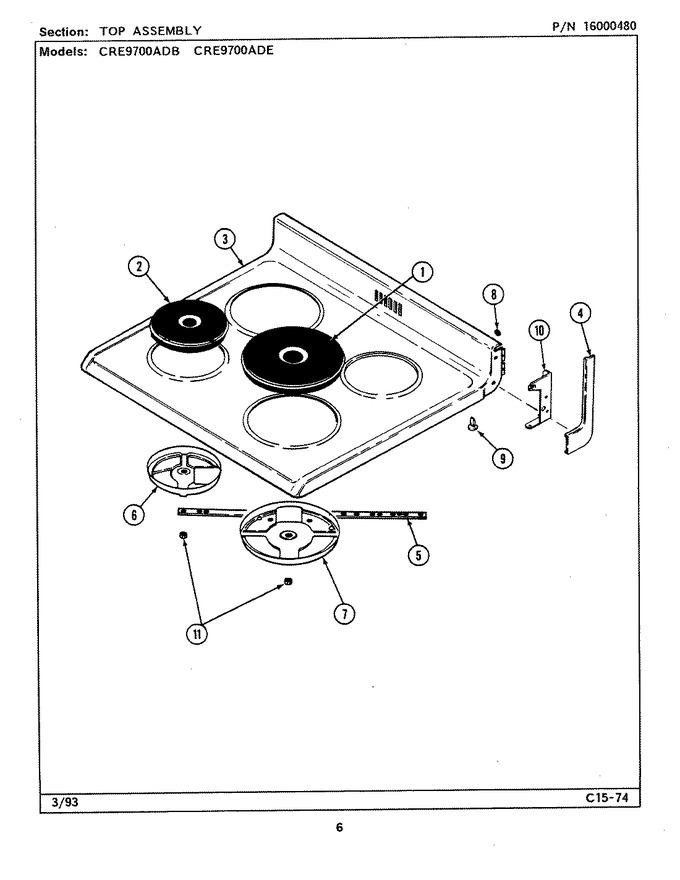

05 - Top Assembly (cre9700adx)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7406P071-60 | Element (8``-2600w) | 10 |
|
- | ||||
| 1 | 7406P082-60 | Element, Surface 8`` (2000w) | 10 |
|
- | ||||
| 2 | WP3147131 | Element, Surface 6`` (Replaces: 7406P083-60) | 10 |
|
$ 244.76 | ||||
| 3 | 2002W077-81 | Top, Main (wht) | 10 |
|
- | ||||
| 4 | 7746P034-60 | End Cap (rt-chr)----na | 10 |
|
- | ||||
| 4 | 7746P035-60 | End Cap (lt-chr) | 10 |
|
- | ||||
| 5 | 3801F268-51 | Bracket Anti-turn | 10 |
|
- | ||||
| 6 | 8004P011-60 | Support, 6`` | 10 |
|
- | ||||
| 7 | 8004P012-60 | Support, 8`` | 10 |
|
- | ||||
| 8 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 10 |
|
$ 7.68 | ||||
| 9 | 8016P013-60 | Glide | 10 |
|
- | ||||
| 10 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 8270P095-60 | Tape, Double Sided | 10 |
|
- | ||||
| 10 | 3807F423-51 | Support, Housing (rt) | 10 |
|
- | ||||
| 10 | 3807F424-51 | Support, Housing (lt) | 10 |
|
- | ||||
| 11 | 8308P001-60 | Polish, Electrol Restoring | 10 |
|
- | ||||
| 11 | 7103P074-60 | Nut, Surface Element | 10 |
|
- | ||||
| 11 | 5175D050-60 | Harness Cooktop | 10 |
|
- |
