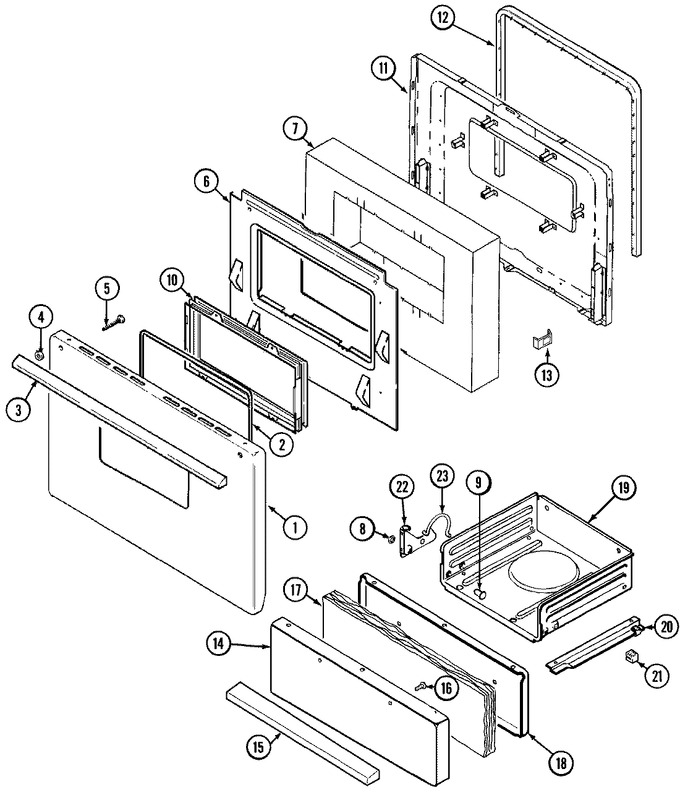

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2401F097-71		Panel, Door (wht)	10	Appelez-nous	-
2	7201P017-60		Gasket, Window	10			$ 52.69
3	7701P119-60		Handle, Door (blk)	10	Appelez-nous	-
4	8010P084-60		Spacer, Handle (blk)	10	Appelez-nous	-
5	WP3387230		Screw, Clamp   (Replaces: 7101P080-60)	10		Immediately	$ 7.69
6	3601F232-45		Baffle, Door	10	Appelez-nous	-
6	W11233072		Screw   (Replaces: 7101P290-60)	10		Immediately	$ 12.62
7	4804F033-60		Insulation, Door	10	Appelez-nous	-
8	7103P022-60		Nut, Grip	10	Appelez-nous	-
9	7113P012-60		Pin, Broiler Hinge	10	Appelez-nous	-
10	7907P015-60		Window Asy.	10	Appelez-nous	-
11	2402W203-19		Lining, Door	10	Appelez-nous	-
12	WP7212P043-60		Seal, Silicone   (Replaces: 7212P034-60)	10		Immediately	$ 56.83
13	7112P034-60		Clip, Door	10	Appelez-nous	-
14	2403F028-71		Panel, Drawer (wht)	10	Appelez-nous	-
15	7701P119-60		Handle, Door (blk)	10	Appelez-nous	-
16	74002481		Screw, Handle   (Replaces: 7101P283-60)	10			$ 5.82
17	4804F025-60		Insulation	10	Appelez-nous	-
18	2404F035-19		Lining, Broiler Drawer	10	Appelez-nous	-
19	3407F012-19		Drawer, Broiler	10	Appelez-nous	-
20	WP7101P126-60		Screw   (Replaces: 7101P061-60)	10		Immediately	$ 6.85
20	3404F023-51		Track, Drawer (rt)	10	Appelez-nous	-
20	3404F022-51		Track, Drawer (lt)	10	Appelez-nous	-
21	8016P013-60		Glide	10	Appelez-nous	-
21	8016P011-60		Glide, Drawer	10	Appelez-nous	-
22	3418F080-51		Hinge, Drawer (rt)	10	Appelez-nous	-
22	3418F079-51		Hinge, Drawer (lt)	10	Appelez-nous	-
22	W11233072		Screw   (Replaces: 7101P290-60)	10		Immediately	$ 12.62
23	7803P064-60		Spring, Hinge (lt)	10	Appelez-nous	-
23	7803P065-60		Spring, Hinge (rt)	10	Appelez-nous	-
