View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Door/drawer (crg7400aax)
03 - Gas Controls (crg7400aax)
04 - Oven/base

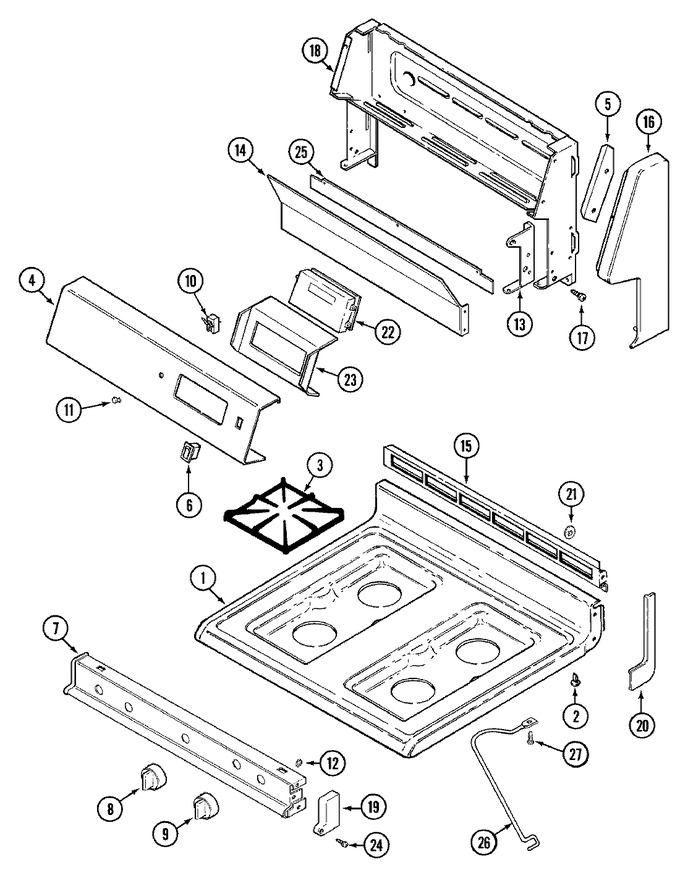

05 - Top Assembly/control Panel (crg7400aax)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2001W081-81 | Top, Main (wht) | 10 |
|
- | ||||
| 2 | 8016P013-60 | Glide | 10 |
|
- | ||||
| 3 | 2003W023-00 | Grate (blk) | 10 |
|
- | ||||
| 3 | 2003W027-00 | Grate (blk) | 11 |
|
- | ||||
| 4 | 7703P371-60 | Panel, Control | 10 |
|
- | ||||
| 5 | 3807F450-45 | Support, Control Pnl (lt) | 10 |
|
- | ||||
| 5 | 3807F449-45 | Support, Control Pnl (rt) | 10 |
|
- | ||||
| 6 | 7403P309-60 | Switch, Rocker (blk) | 10 |
|
- | ||||
| 7 | 7712P179-60 | Panel, Manifold | 10 |
|
- | ||||
| 8 | 7731P099-60 | Knob, Thermostat | 10 |
|
- | ||||
| 8 | 7731P106-60 | Knob, Thermostat (blk) | 15 |
|
- | ||||
| 9 | 7733P095-60 | Knob, Valve | 10 |
|
- | ||||
| 9 | 7733P098-60 | Knob, Valve | 15 |
|
- | ||||
| 10 | 7407P076-60 | Light, Indicator | 10 |
|
- | ||||
| 10 | 7407P100-60 | Light, Indicator | 12 |
|
- | ||||
| 11 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 12 |
|
$ 5.16 | ||||
| 11 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P010-60) | 10 |
|
$ 5.16 | ||||
| 12 | 7112P092-60 | Clip, Spring Grip | 10 |
|
- | ||||
| 13 | 3418A088-34 | Hinge, Main Top (lt) | 10 |
|
- | ||||
| 13 | 3418A087-34 | Hinge, Main Top (rt) | 10 |
|
- | ||||
| 14 | 3604F188-09 | Shield, Flue | 10 |
|
- | ||||
| 15 | 7101P208-60 | Screw (10abx1/4p Tr Zn) | 10 |
|
$ 11.92 | ||||
| 15 | 3608F042-09 | Trim, Vent (blk) | 10 |
|
- | ||||
| 16 | 7726P062-60 | End Cap (lt-blk) | 10 |
|
- | ||||
| 16 | 7726P061-60 | End Cap (rt-blk) | 10 |
|
- | ||||
| 16 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 17 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 10 |
|
Immediately | $ 12.62 | |||
| 18 | 4001F093-51 | Housing, Control Panel | 10 |
|
- | ||||
| 19 | 7744P109-60 | End Cap, Manifold (lt-blk) | 10 |
|
- | ||||
| 19 | 7744P108-60 | End Cap, Manifold (rt-blk) | 10 |
|
- | ||||
| 20 | 7746P030-60 | End Cap (rt-blk) | 10 |
|
$ 26.16 | ||||
| 20 | 7746P031-60 | End Cap (lt-blk) | 10 |
|
$ 26.25 | ||||
| 21 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 10 |
|
$ 7.68 | ||||
| 22 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 22 | 7602P113-60 | Clock | 10 |
|
- | ||||
| 22 | 7602P121-60 | Clock (blk) | 16 |
|
- | ||||
| 23 | 3801F274-45 | Bracket, Clock | 10 |
|
- | ||||
| 23 | 3801F346-51 | Bracket | 16 |
|
- | ||||
| 24 | 7101P311-60 | Screw----na | 10 |
|
- | ||||
| 25 | 8036P003-60 | Shield, Sight | 10 |
|
- | ||||
| 25 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 26 | 7809P014-60 | Support, Prop | 10 |
|
- | ||||
| 27 | 7101P280-60 | Screw W/washer (blk) | 10 |
|
- | ||||
| NI | 5180D154-60 | Harness, Control Panel | 10 |
|
- | ||||
| NI | 8111P010-60 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 16000327 | Guide, Quick Ref. - Maytag | 10 |
|
- |
