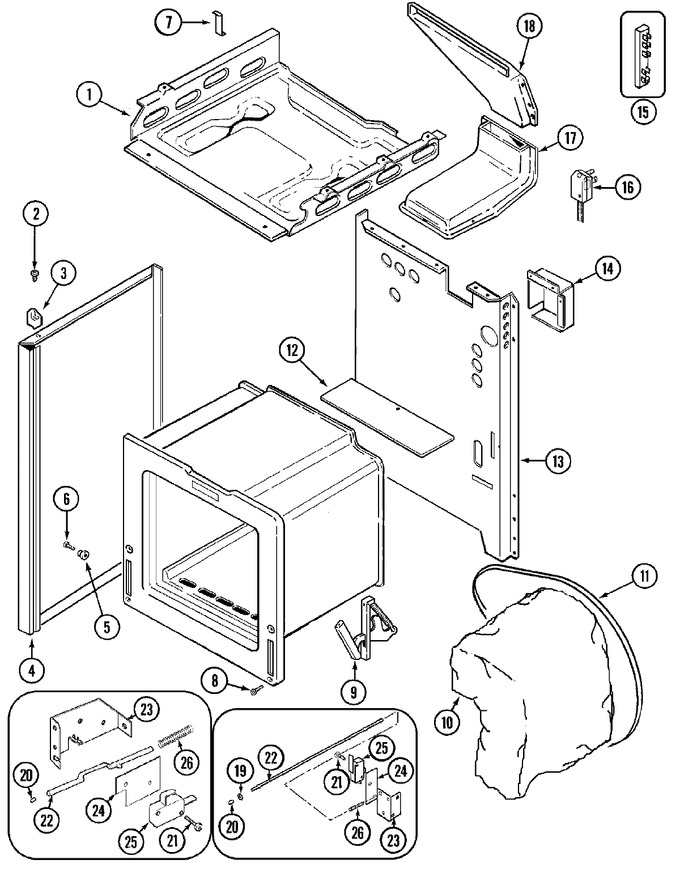

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4011F230-80 | Box, Burner | 10 |
|
- | ||||
| 2 | WP74004005 | Screw (Replaces: 7118P013-60) | 10 |
|
$ 6.95 | ||||
| 3 | 8010P087-60 | Spacer, Main Top (lt) | 10 |
|
- | ||||
| 3 | 8010P088-60 | Spacer, Main Top (rt) | 10 |
|
- | ||||
| 4 | 7003P067-60 | Insulator, Damper Sound | 22 |
|
- | ||||
| 4 | 2618F110-71 | Panel, Side (wht) | 13 |
|
- | ||||
| 4 | 2618F085-71 | Panel, Side (wht) | 10 |
|
- | ||||
| 5 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 10 |
|
$ 7.07 | ||||
| 6 | W11772394 | Screw (Replaces: 7101P300-60) | 10 |
|
Immediately | $ 10.94 | |||
| 7 | 3807F431-45 | Support, Main Top | 10 |
|
- | ||||
| 8 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 10 |
|
$ 4.29 | ||||
| 9 | 7106P032-60 | Hinge, Door | 10 |
|
- | ||||
| 10 | 4804F039-60 | Insulation, Oven Back | 10 |
|
- | ||||
| 10 | 4804F044-60 | Insulation, Oven Wrap | 10 |
|
- | ||||
| 11 | 4820F001-59 | Strap, Retainer | 10 |
|
- | ||||
| 12 | 3807F416-45 | Support, Oven Back | 10 |
|
- | ||||
| 13 | 4002F188-80 | Back, Main | 10 |
|
- | ||||
| 13 | 8008P021-60 | Grommet, Snap | 10 |
|
- | ||||
| 14 | 4005F385-51 | Cover, Back Wire | 10 |
|
- | ||||
| 15 | 7401P042-60 | Board, Terminal | 10 |
|
- | ||||
| 16 | 7402P043-60 | Cord, Power | 10 |
|
- | ||||
| 17 | 4006W113-45 | Box, Vent | 10 |
|
- | ||||
| 17 | WP74003976 | Screw W/washer (Replaces: 7101P124-60) | 10 |
|
$ 6.47 | ||||
| 18 | 4022W007-19 | Extension, Flue Box | 10 |
|
- | ||||
| 19 | 7109P020-60 | Washer | 10 |
|
- | ||||
| 20 | 74001631 | Bumper, Rod | 25 |
|
$ 5.22 | ||||
| 20 | 8003P012-60 | Bumper | 10 |
|
- | ||||
| 21 | 7101P330-60 | Screw, Switch | 10 |
|
- | ||||
| 22 | 7809P017-60 | Rod, Light Switch | 10 |
|
- | ||||
| 22 | 7809P022-60 | Rod, Light Switch | 18 |
|
- | ||||
| 22 | 74001630 | Rod, Door Light Switch | 25 |
|
- | ||||
| 23 | 3801F316-51 | Bracket, Light Switch | 10 |
|
- | ||||
| 23 | 74001632 | Bracket, Switch Actuator | 25 |
|
- | ||||
| 23 | 3801F354-51 | Bracket, Light Switch | 18 |
|
- | ||||
| 24 | 74001626 | Insulator, Door Switch | 25 |
|
- | ||||
| 24 | 7003P047-60 | Insulator, Switch | 10 |
|
- | ||||
| 24 | 7003P062-60 | Insulator, Switch | 18 |
|
- | ||||
| 25 | 4874F001-60 | Switch, Door Light | 18 |
|
- | ||||
| 25 | 12001053 | Kit, Light Switch Actuator | 10 |
|
- | ||||
| 25 | 74001628 | Switch, Door Light | 25 |
|
- | ||||
| 26 | 7803P067-60 | Spring | 10 |
|
- | ||||
| 26 | 74001629 | Spring, Door Switch | 25 |
|
$ 15.03 |
