SELECT A DIAGRAM
New Model Search:

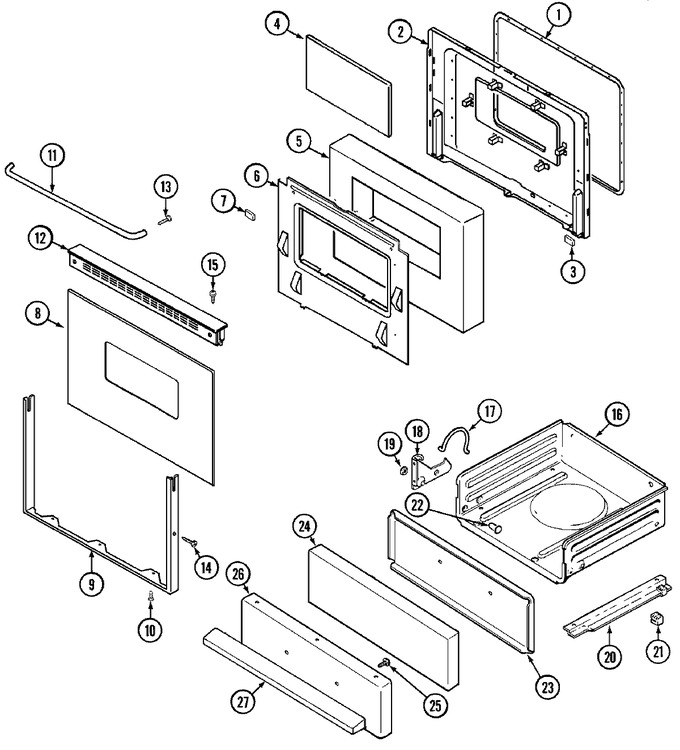

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7212P043-60 | Seal, Door (Replaces: 7212P043-60) | 19 |
|
Immediately | $ 56.83 | |||
| 2 | WP74001574 | Nut, Snap (round-blk) (Replaces: 74001574) | 24 |
|
Immediately | $ 9.91 | |||
| 2 | WP7103P114-60 | Nut, Snap (round-wht) (Replaces: 7103P039-60) | 24 |
|
$ 9.89 | ||||
| 2 | 2402W204-19 | Lining, Door | 19 |
|
- | ||||
| 2 | 2402W213-19 | Lining, Door | 24 |
|
- | ||||
| 3 | 8010P085-60 | Spacer, Rubber | 19 |
|
- | ||||
| 4 | 7902P319-60 | Glass, Door (inner)----na | 19 |
|
- | ||||
| 5 | 7002P158-60 | Insulation, Door | 19 |
|
- | ||||
| 6 | 7101P209-60 | Screw | 19 |
|
- | ||||
| 6 | 3601F240-80 | Baffle, Door | 19 |
|
- | ||||
| 7 | 8270P095-60 | Tape, Double Sided | 19 |
|
- | ||||
| 8 | 7902P361-60 | Glass, Door (outer/blk) | 19 |
|
- | ||||
| 9 | 7706P293-60 | Frame, Door (stnls) | 19 |
|
- | ||||
| 9 | 7706P308-60 | Frame, Door (chr) | 24 |
|
- | ||||
| 9 | 7706P309-60 | Frame, Door (blk) | 29 |
|
- | ||||
| 10 | W11233072 | Screw (Replaces: 7101P290-60) | 19 |
|
Immediately | $ 12.62 | |||
| 11 | 7701P149-60 | Handle, Oven Door (blk) | 19 |
|
- | ||||
| 12 | 7706P305-60 | Trim, Door (upper-blk) | 24 |
|
- | ||||
| 12 | 7744P128-60 | Trim, Door (upper-blk) | 19 |
|
- | ||||
| 12 | W11233072 | Screw (Replaces: 7101P290-60) | 19 |
|
Immediately | $ 12.62 | |||
| 13 | 7101P326-60 | Screw | 19 |
|
- | ||||
| 14 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 24 |
|
Immediately | $ 12.62 | |||
| 14 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 29 |
|
$ 15.94 | ||||
| 14 | 7101P319-60 | Screw | 19 |
|
- | ||||
| 15 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 19 |
|
$ 15.94 | ||||
| 16 | 3407F012-19 | Drawer, Broiler | 19 |
|
- | ||||
| 17 | 7803P065-60 | Spring, Hinge (rt) | 19 |
|
- | ||||
| 17 | 7803P064-60 | Spring, Hinge (lt) | 19 |
|
- | ||||
| 18 | 3418F080-51 | Hinge, Drawer (rt) | 19 |
|
- | ||||
| 18 | 3418F079-51 | Hinge, Drawer (lt) | 19 |
|
- | ||||
| 19 | 7103P022-60 | Nut, Grip | 19 |
|
- | ||||
| 20 | 3404F023-51 | Track, Drawer (rt) | 19 |
|
- | ||||
| 20 | 3404F022-51 | Track, Drawer (lt) | 19 |
|
- | ||||
| 21 | 8016P011-60 | Glide, Drawer | 19 |
|
- | ||||
| 22 | 7113P012-60 | Pin, Broiler Hinge | 19 |
|
- | ||||
| 23 | 2404F035-19 | Lining, Broiler Drawer | 19 |
|
- | ||||
| 24 | 4804F025-60 | Insulation | 19 |
|
- | ||||
| 25 | 74002481 | Screw, Handle (Replaces: 7101P283-60) | 19 |
|
$ 5.82 | ||||
| 26 | 2403F028-71 | Panel, Drawer (wht) | 19 |
|
- | ||||
| 27 | 7701P119-60 | Handle, Door (blk) | 19 |
|
- |
