SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Gas Controls


05 - Oven/base


06 - Wiring Information

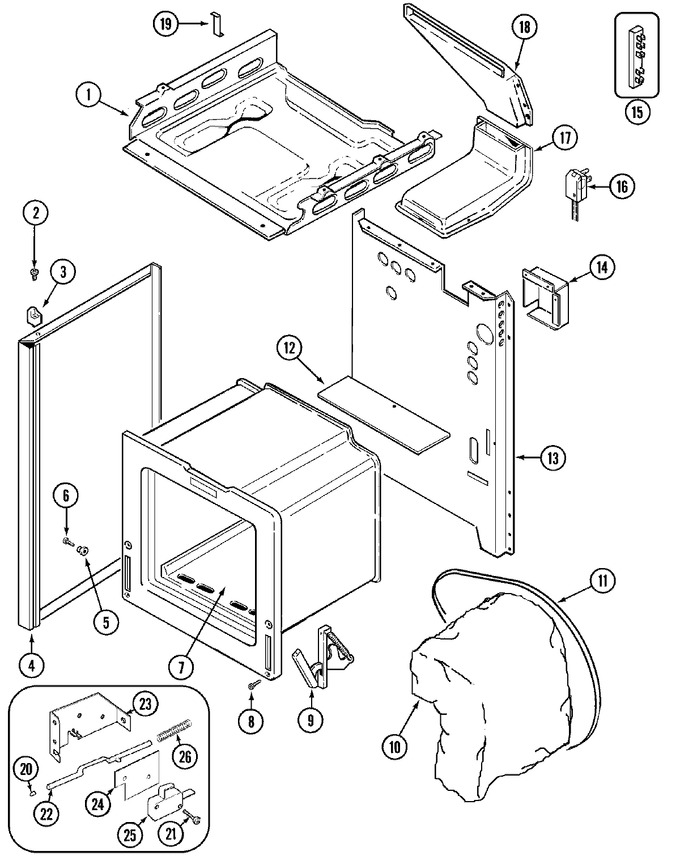

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4011F230-80		Box, Burner	10	Appelez-nous	-
2	7101P313-60		Screw (8abx3/8-zn)	10	Appelez-nous	-
3	8010P088-60		Spacer, Main Top (rt)	10	Appelez-nous	-
3	8010P087-60		Spacer, Main Top (lt)	10	Appelez-nous	-
4	74001885		Panel, Side (alm)	10	Appelez-nous	-
4	7003P067-60		Insulator, Damper Sound	10	Appelez-nous	-
5	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)	10			$ 7.07
6	WPW10348409		Screw (8abx13/16-zn)   (Replaces: 74001449)	10		Immediately	$ 6.98
7	5504M004-19		Bottom, Oven Assy.	10	Appelez-nous	-
8	WP4159193		Screw   (Replaces: 7101P112-60)	10			$ 4.29
9	7106P055-60		Hinge	10			$ 52.22
10	4804F044-60		Insulation, Oven Wrap	10	Appelez-nous	-
10	4804F039-60		Insulation, Oven Back	10	Appelez-nous	-
11	4820F001-59		Strap, Retainer	10	Appelez-nous	-
12	3807F416-51		Support, Oven Back Insulation	10	Appelez-nous	-
13	4002F211-80		Back, Main	10	Appelez-nous	-
13	8008P021-60		Grommet, Snap	10	Appelez-nous	-
14	4005F385-51		Cover, Back Wire	10	Appelez-nous	-
15	7401P037-60		Block, Terminal	10	Appelez-nous	-
16	12400044		Kit, Line Cord	10			$ 33.48
17	WP74003976		Screw W/washer   (Replaces: 7101P124-60)	10			$ 6.47
17	4006W113-45		Box, Vent	10	Appelez-nous	-
18	4022W007-19		Extension, Flue Box	10	Appelez-nous	-
19	3807F431-45		Support, Main Top	10	Appelez-nous	-
20	74001631		Bumper, Rod	10			$ 5.22
21	7101P330-60		Screw, Switch	10	Appelez-nous	-
22	74001630		Rod, Door Light Switch	10	Appelez-nous	-
23	74001632		Bracket, Switch Actuator	10	Appelez-nous	-
24	74001872		Insulator, Switch	10	Appelez-nous	-
25	74001628		Switch, Door Light	10	Appelez-nous	-
26	74001629		Spring, Door Switch	10			$ 15.03

    View Diagram in Separate Window       Print Part List
