SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Gas Controls


05 - Oven/base


06 - Wiring Information

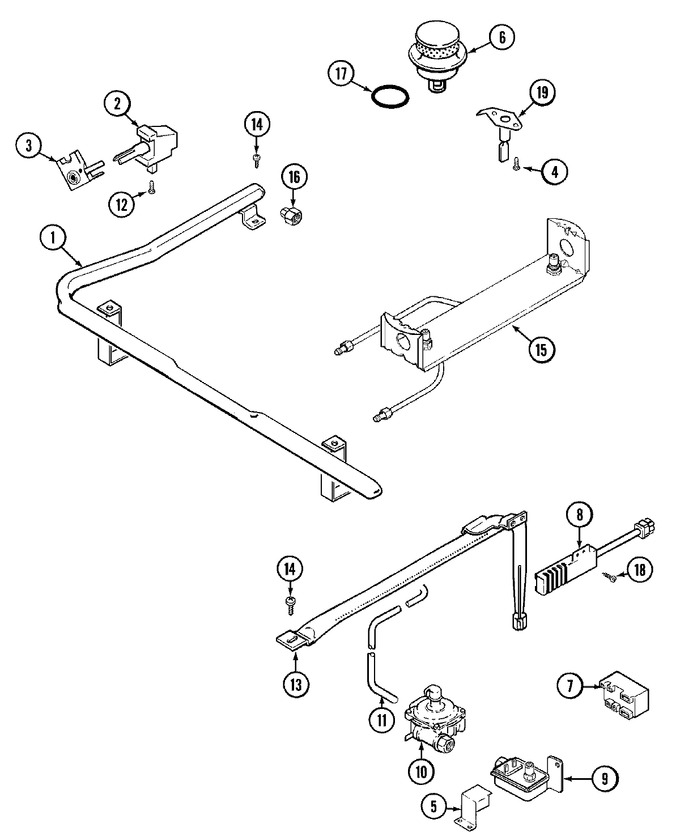

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7513P156-60		Pipe, Manifold	10	Appelez-nous	-
2	7502P252-60		Valve, Burner	10	Appelez-nous	-
3	WP7403P287-60		Switch, Igniter   (Replaces: 7403P287-60)	10			$ 130.75
4	WP3351614		Screw   (Replaces: 7101P328-60)	10		Immediately	$ 6.26
5	4005F433-51		Cover, Valve	10	Appelez-nous	-
6	WP3412D024-09		Sealed Burner Assy. (blk)   (Replaces: 3412D018-09)	10		Immediately	$ 92.69
7	12001596		Module, Spark   (Replaces: 7431P027-60)	10		Immediately	$ 85.93
8	12400035		Igniter Kit	10		Immediately	$ 60.44
9	7501P137-60		Valve, Oven	10			$ 175.57
10	WP74006429		Regulator, Pressure   (Replaces: 7510P067-60)	10			$ 282.77
10	7507P123-60		Pipe, Nipple	10	Appelez-nous	-
11	3414F104-44		Tubing - Regulator & Pipe	10	Appelez-nous	-
12	7101P044-60		Screw, Valve	10	Appelez-nous	-
13	3403D023-45		Burner, Oven	10	Appelez-nous	-
14	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
15	5187D030-60		Orifice Fitting Assembly (lt)	10	Appelez-nous	-
15	5187D031-60		Orifice Fitting Assembly (rt)	10	Appelez-nous	-
16	7103P121-60		Loxit Nut	10	Appelez-nous	-
17	WP3412D024-09		Gasket, Burner   (Replaces: 7201P050-60)	10		Immediately	$ 92.69
18	WP3351614		Screw   (Replaces: 7101P328-60)	10		Immediately	$ 6.26
19	W10124350		Not Required Part Or See Note Igniter Not Sold Separately (must Order Sealed Burner- Item No.6)	10	Appelez-nous	-
NI	5140M038-60		Wires, Igniter (4-or)	10	Appelez-nous	-
NI	5125A357-60		Wires, Igniter Switch(3bk/3tn)	10	Appelez-nous	-
NI	74002232		Wires, Switch/module	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
